M27C160-90F1

16兆位的2Mb X8或X16的1Mb UV EPROM和OTP EPROM 16 Mbit 2Mb x8 or 1Mb x16 UV EPROM and OTP EPROM

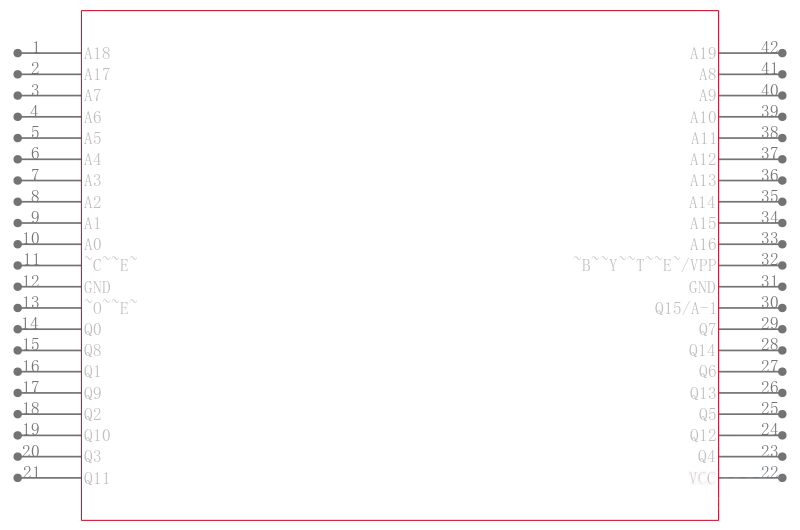

DESCRIPTION

The M27C160 is a 16 Mbit EPROM offered in the two ranges UV ultra violet erase and OTP one time programmable. It is ideally suited for micro processor systems requiring large data or program storage and is organised as either 2 Mbit words of 8 bit or 1 Mbit words of 16 bit. The pin-out is compatible with a 16 Mbit Mask ROM.

The FDIP42W window ceramic frit-seal package has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written rapidly to the device by following the programming procedure.

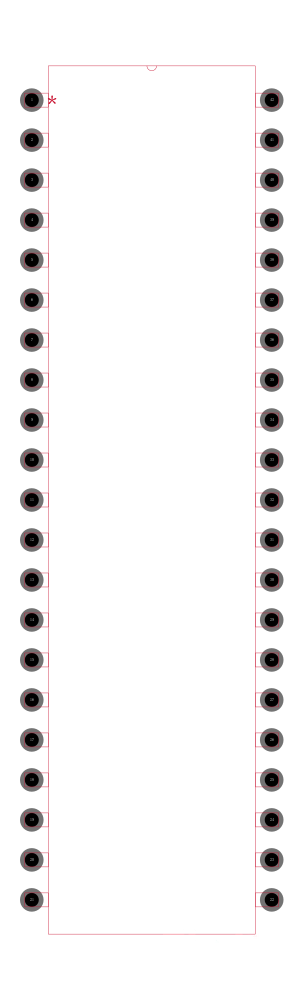

For applications where the content is programmed only one time and erasure is not required, the M27C160 is offered in PDIP42, SDIP42, PLCC44 and SO44 packages.

■ 5V ± 10% SUPPLY VOLTAGE in READ OPERATION

■ ACCESS TIME: 50ns

■ BYTE-WIDE or WORD-WIDE CONFIGURABLE

■ 16 Mbit MASK ROM REPLACEMENT

■ LOW POWER CONSUMPTION

   – Active Current 70mA at 8MHz

   – Standby Current 100µA

■ PROGRAMMING VOLTAGE: 12.5V ± 0.25V

■ PROGRAMMING TIME: 50µs/word

■ ELECTRONIC SIGNATURE

   – Manufacturer Code: 20h

   – Device Code: B1h
