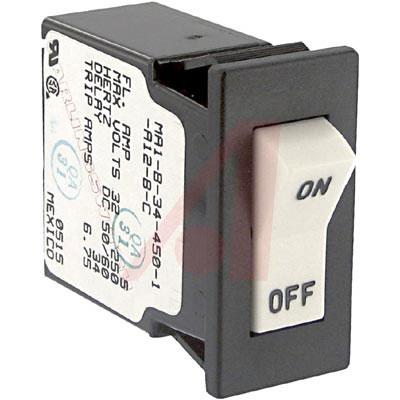

MA1-B-34-450-1-A12-B-C

断路器 5 A ONE POLE ANGLED

125/250 VAC, 80 VDC @ 50/60 HZ, 1500 V @ 50/60 Hz Dielectric Strength, M Series Circuit Breaker

The M Series miniature magnetic circuitry breakers are designed with the exclusive Rockerguard® to help prevent inadvertent actuation. "Wiping" contact design ensures long-term reliability. Units are supplied with an all-purpose medium, AC-DC delay curve-34, rated at 250 VAC up to 12 amps, 125 VAC over 12 amps. UL Recognized and CSA Certified.

.

* Percentage of Rated Current with Trip Time in Seconds:** 135% — 3-70; 200% — 1-15; 400% — 0.1-4; 600% — 0.008-2; 800% — 0.006-0.800; 1,000% — 0.005-0.350.

The low cost M-Series utilizes the hydraulic magnetic principle which provides accurate and reliable circuit protection even when exposed to extremely hot and/or cold application environments. Available in a choice of rocker actuator styles and colors, pu
