MRT100KP48CA

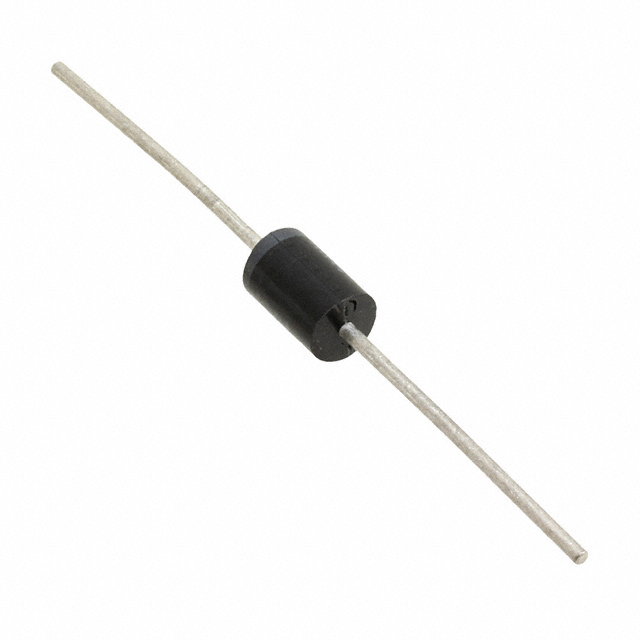

MRT100KP48CA图片1
MRT100KP48CA图片2
MRT100KP48CA概述

48V 100000W

These MRT100KP40A to MRT100KP400CA high reliability devices protect against dangerous high-voltage, short term transients such as those caused the the secondary effects of lightning per IEC61000-4-5 see protection classes below and RTCA/DO-160. They also protect against voltage spikes caused by inductive load switching, induced RFI, and ESD or EFT per IEC61000-4-2 and IEC61000-4-4. Clamping time is nearly instantaneous at <5ns.


立创商城:
Vrwm:48V 100kW


艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this MRT100KP48CA TVS diode from Microsemi. Its maximum leakage current is 150 μA. Its peak pulse power dissipation is 100000 W. This device&s;s maximum clamping voltage is 94.3 V and minimum breakdown voltage is 53.3 V. Its test current is 5 mA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This product comes packaged in bulk, so the parts will be stored loosely.


Verical:
Diode TVS Single Bi-Dir 48V 100KW 2-Pin Case 5A Bag


MRT100KP48CA中文资料参数规格
技术参数

钳位电压 94.3 V

最大反向电压(Vrrm) 48V

测试电流 5 mA

脉冲峰值功率 100000 W

最小反向击穿电压 53.3 V

击穿电压 53.3 V

工作温度Max 150 ℃

工作温度Min -65 ℃

工作结温 -65℃ ~ 150℃

封装参数

安装方式 Through Hole

引脚数 2

封装 DO-204AR

外形尺寸

封装 DO-204AR

物理参数

工作温度 -65℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Bag

制造应用 通用

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

MRT100KP48CA引脚图与封装图
MRT100KP48CA引脚图
MRT100KP48CA封装图
MRT100KP48CA封装焊盘图
在线购买MRT100KP48CA
型号: MRT100KP48CA
描述:48V 100000W
