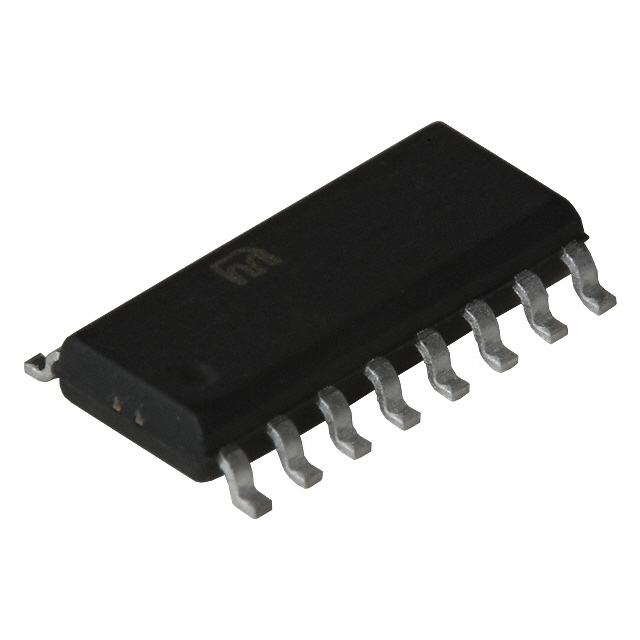

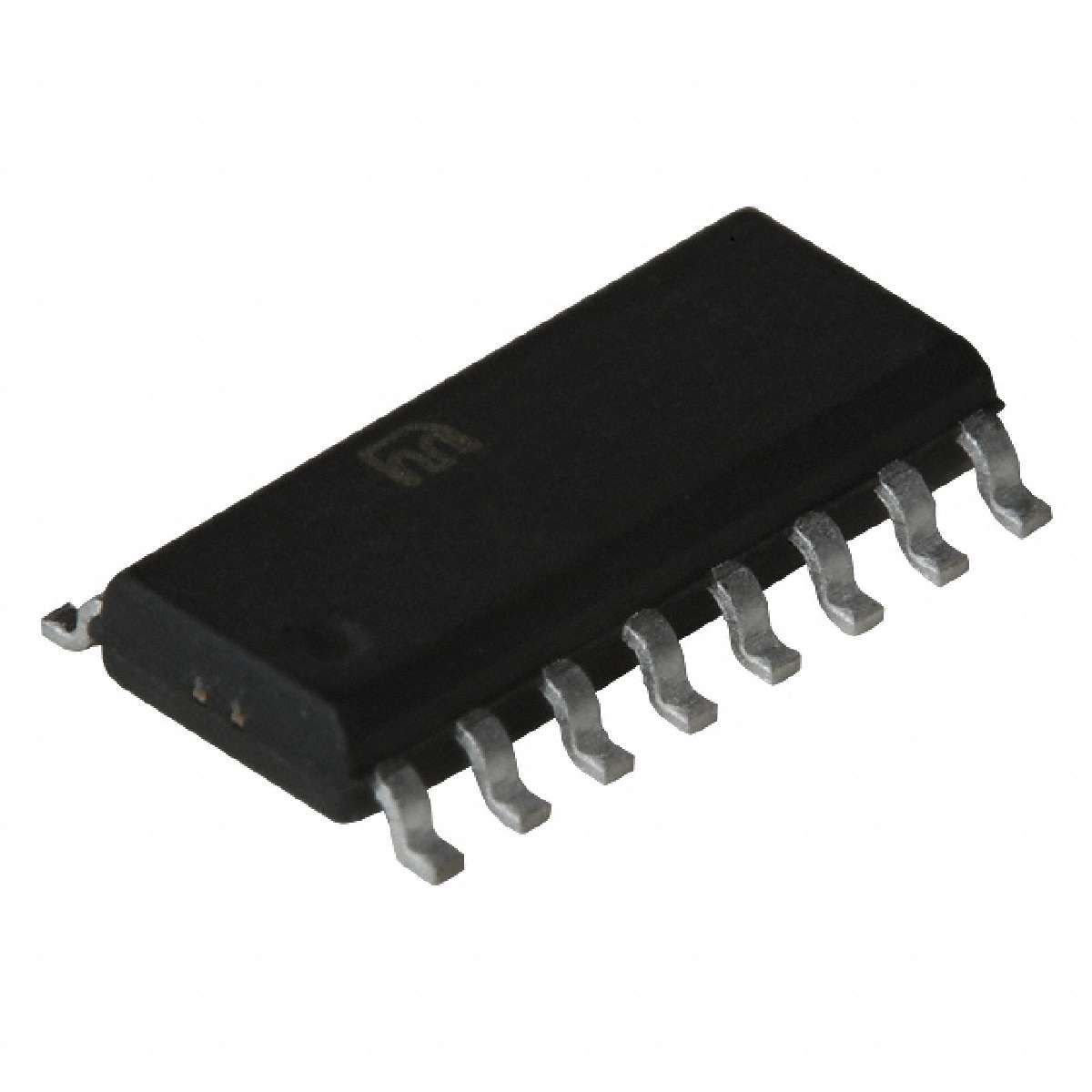

RF Receiver ASK/OOK 5V 16Pin SOIC N
General Description
The MICRF002 is a single chip ASK/OOK ON-OFF Keyed RF receiver IC. This device is a true “antenna-in to data-out” monolithic device. All RF and IF tuning is accomplished automatically within the IC which eliminates manual tuning and reduces production costs. The result is a highly reliable yet low cost solution.
The MICRF002 is a fully featured part in 16-pin packaging, the MICRF022 is the same part packaged in 8-pin packaging with a reduced feature set see “Ordering Information” for more information.
Features
• 300MHz to 440MHz frequency range
• Data-rate up to 10kbps fixed-mode
• Low Power Consumption
• 2.2mA fully operational 315MHz
• 0.9µA in shutdown
• 220µA in polled operation 10:1 duty-cycle
• Wake-up output flag to enable decoders and microprocessors
• Very low RF reradiation at the antenna
• Highly integrated with extremely low external part count
Applications
• Automotive Remote Keyless Entry RKE
• Remote controls
• Remote fan and light control
• Garage door and gate openers
