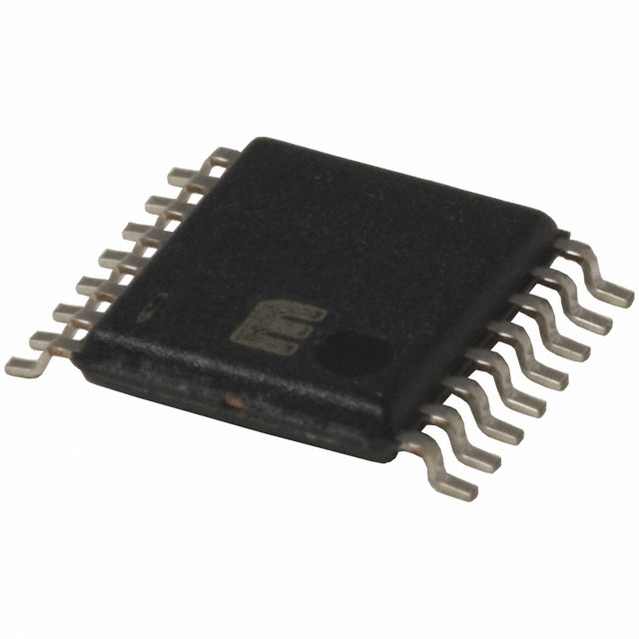

MIC2562A-1YTS

IC PCMCIA/CARDBUS CTRLR 16-TSSOP

General Description

The MIC2562A PCMCIA Personal Computer Memory Card International Association and CardBus power controller handles all PC Card slot power supply pins, both VCC and VPP. The MIC2562A switches between the three VCC voltages 0V, 3.3V and 5.0V and the VPP voltages OFF, 0V, 3.3V, 5V or 12.0V required by PC Cards. The MIC2562A switches voltages from the system power supply to VCC and VPP. Output voltage is selected by two digital inputs each and output current ranges up to 1A for VCC and 250mA for VPP.

Features

• High-efficiency, low-resistance switches require no 12V bias supply

• No external components required

• Output current limit and overtemperature shutdown

• Open-drain flag for error condition indication

• Ultra-low power consumption

• Complete PC Card/CardBus VCC and VPP switch matrix in a single package

• Logic compatible with industry standard PC Card logic controllers

• No voltage shoot-through or switching transients

• Break-before-make switching

• Digital selection of VCC and VPP voltages

• Over 1A VCC output current

• Over 200mA VPP output current

• Pb-free SOIC packages

• UL recognized, file #179633

Applications

• PC Card power supply pin voltage switch

• CardBus slot power supply control

• Data collection systems

• Machine control data input systems

• Wireless communications

• Bar code data collection systems

• Instrumentation configuration/datalogging

• Docking stations portable and desktop

• Power supply management

• Analog power switching
