MMQA27VT1

24W四共阳TVS

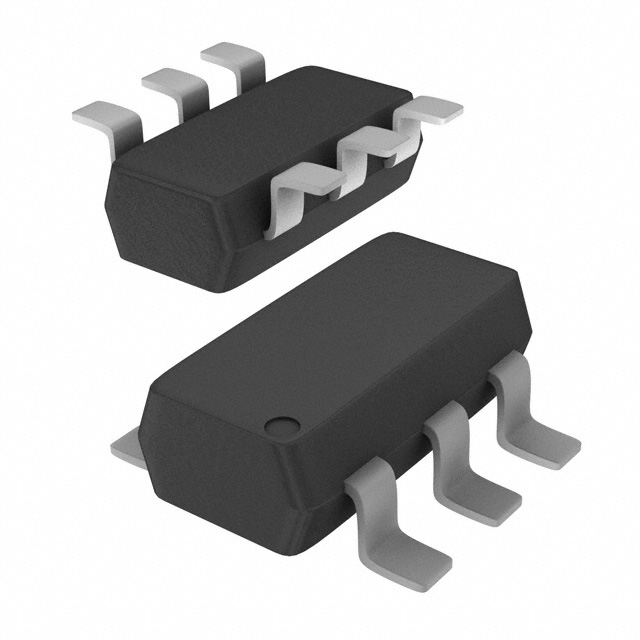

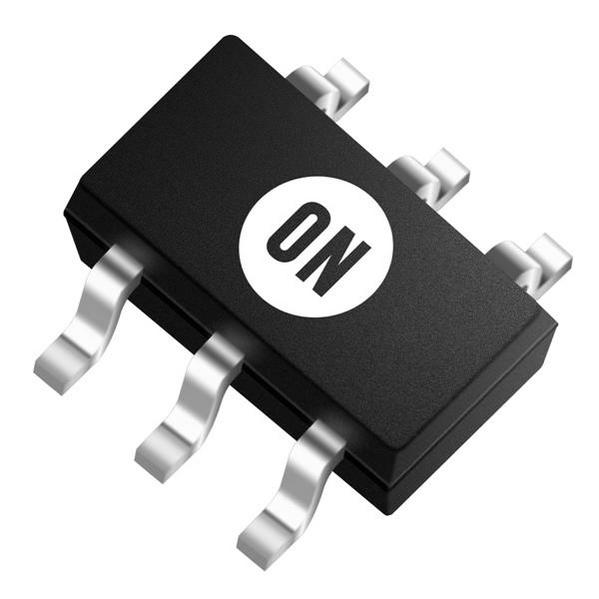

SC-74 Quad Monolithic Common Anode

Transient Voltage Suppressors for ESD Protection

SC−74 QUAD TRANSIENT VOLTAGE SUPPRESSOR 24 WATTS PEAK POWER 5.6−33 VOLTS

This quad monolithic silicon voltage suppressor is designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment, and other applications. Its quad junction common anode design protects four separate lines using only one package. These devices are ideal for situations where board space is at a premium.

Features

•SC−74 Package Allows Four Separate Unidirectional Configurations

•Peak Power −Min. 24 W @ 1.0 ms Unidirectional, per Figure 5 Waveform

•Peak Power −Min. 150 W @ 20 s Unidirectional, per Figure 6 Waveform

•Maximum Clamping Voltage @ Peak Pulse Current

•Low Leakage < 2.0 A

•ESD Rating of Class 3B exceeding 16 kV per the Human Body Model

•SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

•Pb−Free Packages are Available

.
