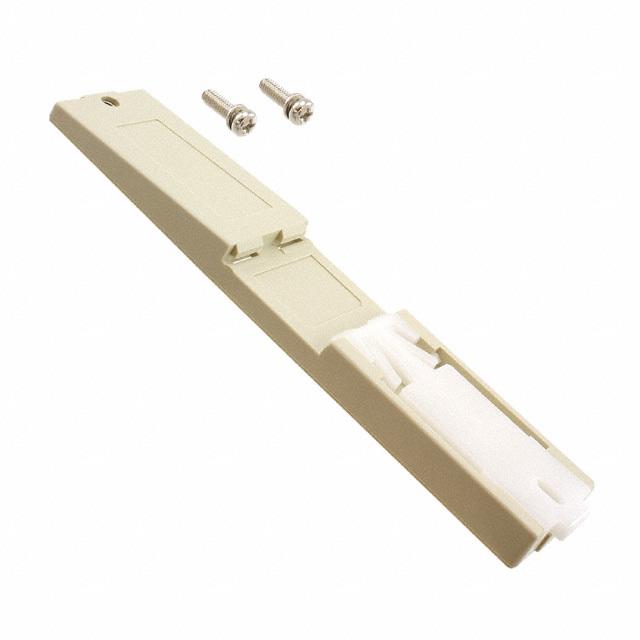

Adapter For Mounting The Controller On A 35mm 1.378In Width Din Rail
**SL Modular Connectors** Leading the consumer electronics and automotive industries with the largest number of variations and cabling configurations, SL Modular Connectors and Assemblies are ideal for low-power and signal wire-to-board and wire-to-wire applications.
The comprehensive- .
- *SL Stackable Linear Modular Connector System** includes: press-fit compliant-pin, low-profile, latching vertical and right-angle headers; five stackable, low-profile housings for male or female crimp terminals; pre-assembled, single-piece pin and receptacle connector assemblies for IDT termination of discrete wire or ribbon cable and piercing crimp termination of FFC/FPC; single- and dual-row latching interim clips for stacking of subassemblies to form larger connectors; and panel mounts for modular wire-to-wire remote interconnections. SL products are capable of mating with select C-Grid and KK products. This product family is suitable for low-power signal applications such as computers, medical instruments, and automotive controls.
**Features:**
* Current: 3.0A max. Discrete Wire, 2.0A max. FFC/FPC
* Voltage: 250V
* Contact Resistance: 15 Milliohms
* Dielelctric Withstanding Voltage:
* 1500V AC for 1 Minute
* Insulation Resistance: 1,000 Megohms
* Connector Retention: 45N max. When Latch Engaged, 15N min. With Latch Disengaged
* Maximum Wire Diameter: 1.63mm 22 to 24 AWG Terminal, 1.52mm 24 to 30 AWG Terminal
* Operating Temperature: - 40 to 105°C
* Solder Temperature: 260°C Through-hole Wave Solder, 245°C IR Reflow SMT and Through-hole Paste
