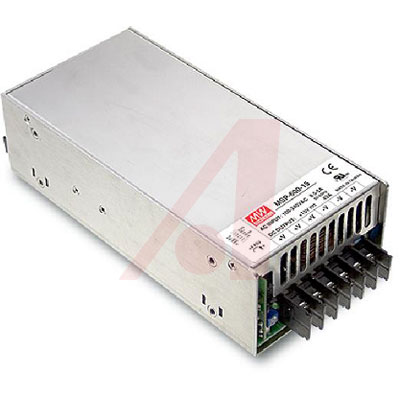

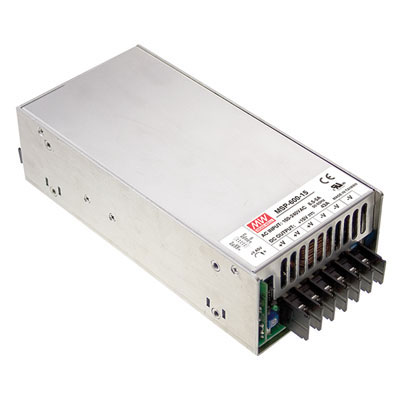

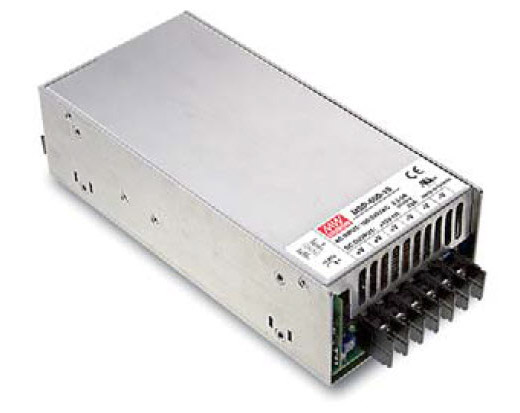

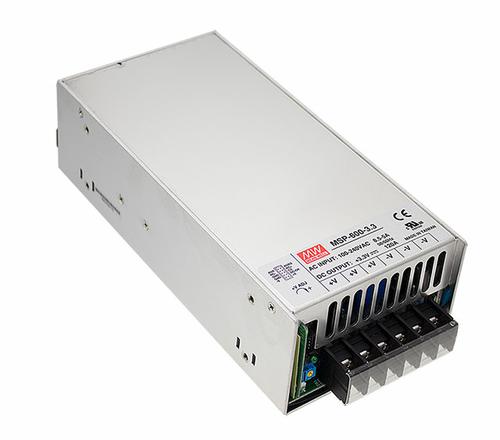

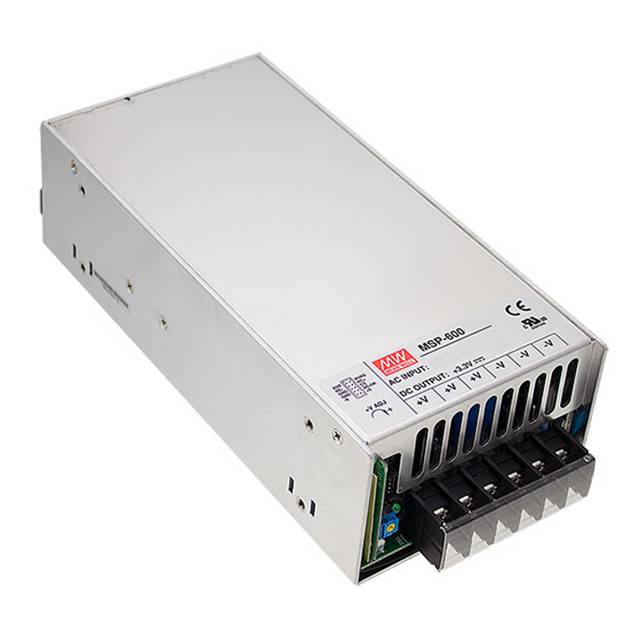

AC-DC Power Supply Single-OUT 15V 43A 645W Medical 19Pin
* Active PFC
* Withstand 300 VAC Surge Input for 5 Seconds
* Short Circuit, Overload, Over Voltage Protection
* MSP-100 and MSP-200 - Cooling by Free Air Convection
* MSP-300 and MSP-450 - Cooling by Built-In Cooling Fan
* MSP-200 Thru MSP-450 - 5 VDC @ 0.3 A Standby Output
* MSP-200 Thru MSP-450 - Remote Sense
* MSP-300 and MSP-450 - DC OK Signal
* 1U Low Profile
* Medical Safety Approved MOOP Level
* Remote ON-OFF Control
* No Load Power Consumption <0.5W
* 105°C Long Life Electrolytic Capacitors
* 5-Year Warranty
额定功率 645 W
输出接口数 1
输出电压 15 V
输出电流 43 A
输出功率 645 W
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 43 A
输入电流Min 8.5 A
输出功率Max 645 W
工作温度Max 70 ℃
工作温度Min -40 ℃
电源电压 85.264VAC, 120.370VDC
输入电压 100VAC ~ 264VAC
引脚数 19
颜色 Silver
重量 1.57 kg
工作温度 -40℃ ~ 70℃
产品生命周期 Active
制造应用 医用型
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
