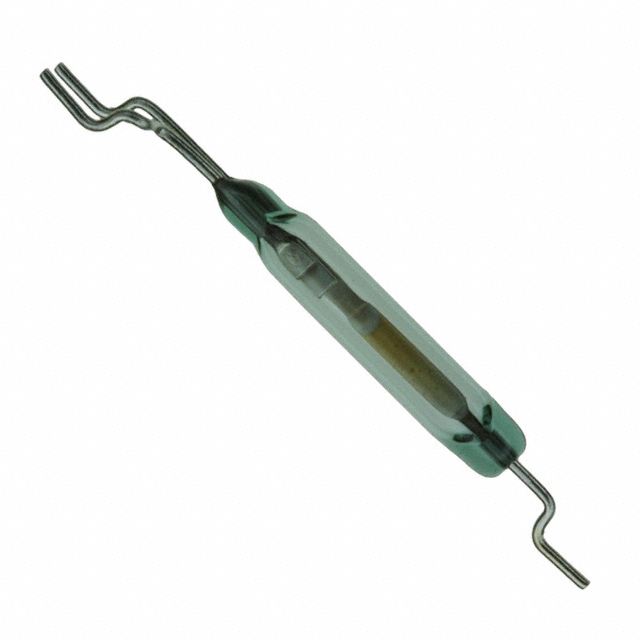

STANDEXMEDER MK23-90-D-2 Reed Switch, SPDT, SMD, 500mA, 175V, 10W
The is a SPDT miniature Surface-mount Reed Switch with 14mm glass length and 2.54mm diameter. It is suitable for air conditioning, gas metering, barcode scanner, security panel and water flow gauge switch applications. It has 10W rated power, 175VDC switching voltage and 0.5A DC switching current. It is a bare glass version of our surface-mount reed sensors, offering a more economic and compact design as compared to over-moulded reed sensors. It is used in ON/OFF control switch, proximity, motion and position detection in general purpose applications.
电容 1.5 pF
触点类型 SPDT
接触电阻Max 0.15 Ω
安装方式 Surface Mount
封装 SMD
长度 14 mm
宽度 1.78 mm
高度 1.78 mm
封装 SMD
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Test & Measurement, Industrial, Aerospace, Defence, Military, Automotive, Sensing & Instrumentation, Security, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
