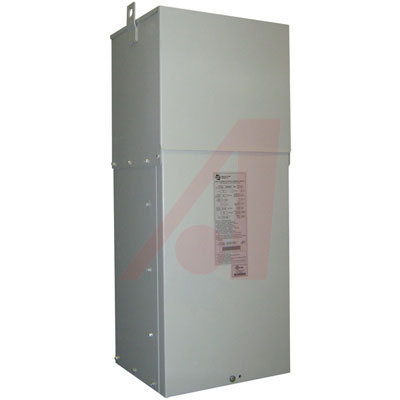

HPS M1PC007LESF7 PWP 1PH 7.5K 480-240/120A SS Mini Power Center
HPS PowerPlus™ is a convenient pre-wired power center that saves you time, money and space. HPS PowerPlus™ combines a pre-wired primary breaker, secondary power panel, and dry-type shielded transformer in a Type 3R enclosure. Simply add the required secondary breaker and you effortlessly have a power center that is ready for indoor or outdoor use!
**Features:**
* Single-Phase, 60 Hz Frequency
* Ratings Include: 5, 7.5, 10, 15, 25 kVA
* 480 Primary, 120/240 Secondary
* Shielded Transformer
* Pad-Lockable Hinged Cover
* 180° Insulation Class
* 115° Temperature Rise
* Primary Taps: 2-5% FCBN
* Meets NEMA, ANSI and OSHA Standards
* Type 3R Indoor/Outdoor Enclosure with Conduit Knockouts
* Optional 316 Stainless Steel Enclosure Available
* 15-Year Limited Warranty on Transformer
* 1-Year Limited Warranty on Mini Power Center
* Wall Mounting
**Benefits:**
* The shielded transformers are encapsulated for general-purpose indoor or outdoor use within a variety of environments.
* An electrostatic shield is placed between the primary and secondary winding and grounded to reduce electrical interference and to provide additional protection.
* The transformer is protected by the primary main breaker, which handles high interrupting fault conditions.
* The pre-wired mini-power center is easy to install and it occupies considerably less space.
