MS4800 RECEIVER CABLE, 15 METER 49.2Ft.

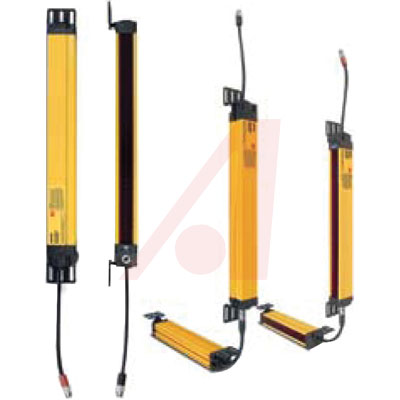

The MS4800 light curtain family is an all-purpose light curtain available in three distinct versions. These versions are identified as the MS4800A, MS4800B and the MS4800S. The MS4800A and MS4800B feature set configuration can be changed through the use of an external device called the Programming Diagnostic Module PDM and on the MS4800S through selector switches.
**Features:**
* Resolutions: 14 mm 0.55 In., 20 mm 0.79 In., 30 mm 1.18 In. and 40 mm 1.57 In.
* Ranges: 7 m 23 Ft. for 14 mm Resolution Systems; and 20 m 65 Ft. for 20, 30 and 40 mm Resolution Systems
* Protected Heights: 280 to 1800 mm 11 to 70 In. for 14 and 20 mm Resolution Systems; 280 to 2120 mm 11 to 83 In. for 30 mm Resolution Systems; and 360 to 2040 mm 14 to 80.3 In. for 40 mm Resolution Systems
* Compact Size: 50 × 38 mm 2 × 1.5 In.
* “Two-Box” Design — No Separate Control Box; No Cable Between Transmitter and Receiver
* Individual Beam Indicators
* Quick and Easy Fixed Blanking Programming Option “SB”
