MIC842LYC5

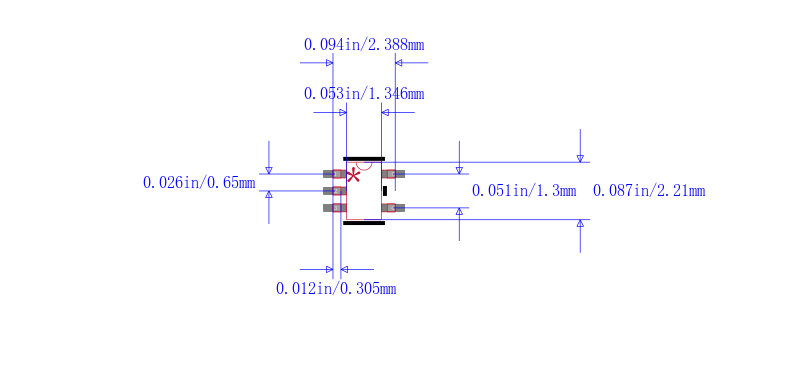

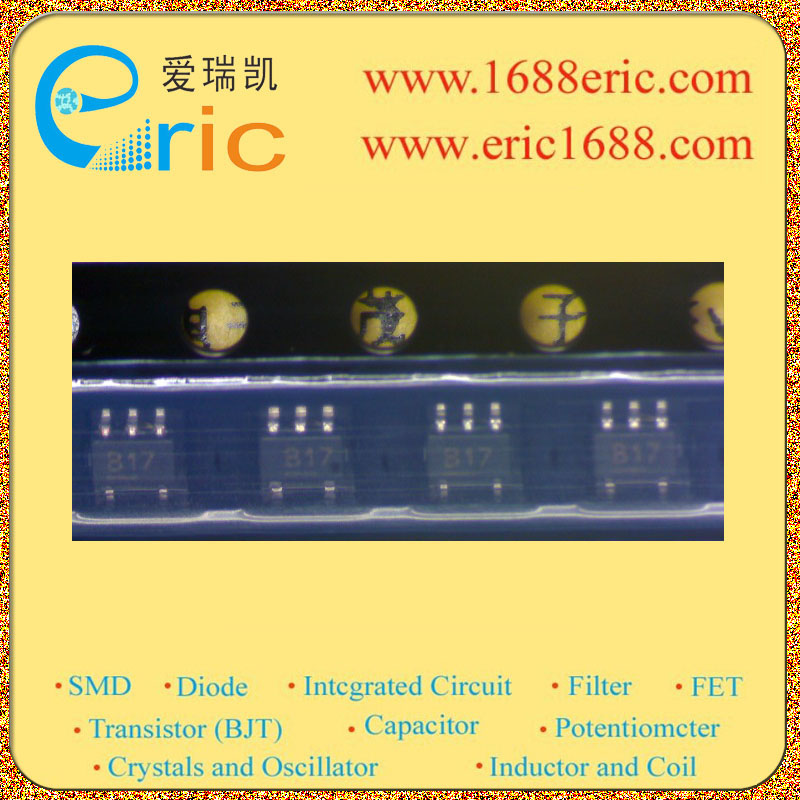

MIC842LYC5TR SOT-353/SC70-5/SOT323-5/SC-88A marking/标记 B17

类型Type| 带电压基准 with Voltage Reference \---|--- 元件数Number of Elements| 1 输出类型Output Type| 推挽式 Push-Pull 电源电压，单/双 ±Voltage - Supply, Single/Dual ±| 1.5 V ~ 5.5 V 输入失调电压（最大值）Voltage - Input Offset Max| 输入偏置电流（最大值）Current - Input Bias Max| 输出电流（典型值）Current - Output Typ| 20mA 静态电流（最大值）Current - Quiescent Max| 3µA CMRR，PSRR（典型值）CMRR, PSRR Typ| 传播延迟（最大值）Propagation Delay Max| 12us 滞后Hysteresis| 35mV Description & Applications| FEATURES • comparator with 1.25% reference and adjustable hysteresis • 1.5V to 5.5V operating range • 1.5µA typical supply current • 1.25% voltage threshold accuracy • 10nA max input leakage current over temperature • 10us propagation delay 描述与应用| 特点 •1.25％的基准比较和可调滞后 •1.5V到5.5V工作范围 •1.5μA典型电源电流 •1.25％的电压阈值精度 •10nA的最大输入漏电流随温度 •10us的传播延迟
