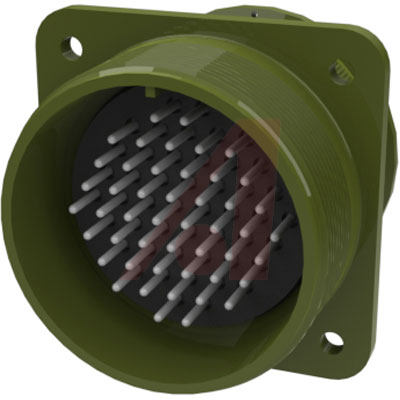

Conn; Circ; MIL-5015; Recpt; Metal; Str; Sldr; 36 Sz; 48 #16Pin Cnts; WallMnt
AS50151 Connectors,High Grade Aluminum Alloy Shell, Solder Contact. Material. Shells: High Grade Aluminum Alloy. Electrically conductive cadmium plating with olive drab chromate. Insulators: Neoprene. Contacts: Solder Type. Pins and Sockets are machined brass alloy with a silver plate finish. Class R environmental connector with grommet nut
Allied Electronics:
Conn; Circ; MIL-5015; Recpt; Metal; Str; Sldr; 36 Sz; 48 #16 Pin Cnts; WallMnt
触点数 48
Angle Straight
Application Mil-Aero/Industrial
Brand/Series MS3100 Series
Contact Plating Silver
Contact Type Pin
Finish, Housing Olive Drab Cadmium
Material, Body Aluminum Alloy
Mating Type Threaded
MIL Type Mil-5015
Mounting Type Wall
Number of Contacts 48
Primary Type 5015 MilSpec
Shell Size 36
