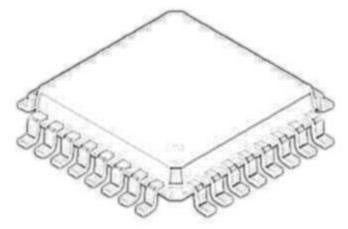

MC100LVEP111FAR2

2.5V / 3.3V 1时10差分ECL / PECL / HSTL时钟驱动器 2.5V / 3.3V 1:10 Differential ECL/PECL/HSTL Clock Driver

Description

The MC100LVEP111 is a low skew 1−to−10 differential driver, designed with clock distribution in mind, accepting two clock sources into an input multiplexer. The PECL input signals can be either differential or single−ended if the VBB output is used. HSTL inputs can be used when the LVEP111 is operating under PECL conditions.

The LVEP111 specifically guarantees low output−to−output skew. Optimal design, layout, and processing minimize skew within a device and from device to device

Features

• 85 ps Typical Device−to−Device Skew

• 20 ps Typical Output−to−Output Skew

• Jitter Less than 1 ps RMS

• Maximum Frequency > 3 Ghz Typical

• VBB Output

• 430 ps Typical Propagation Delay

• The 100 Series Contains Temperature Compensation

• PECL and HSTL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V

• NECL Mode Operating Range: VCC = 0 V with VEE = −2.375 V to −3.8 V

• Open Input Default State

• LVDS Input Compatible

• Fully Compatible with MC100EP111

• Pb−Free Packages are Available
