75V 100000W
These MRT100KP40A to MRT100KP400CA high reliability devices protect against dangerous high-voltage, short term transients such as those caused the the secondary effects of lightning per IEC61000-4-5 see protection classes below and RTCA/DO-160. They also protect against voltage spikes caused by inductive load switching, induced RFI, and ESD or EFT per IEC61000-4-2 and IEC61000-4-4. Clamping time is nearly instantaneous at <5ns.
艾睿:

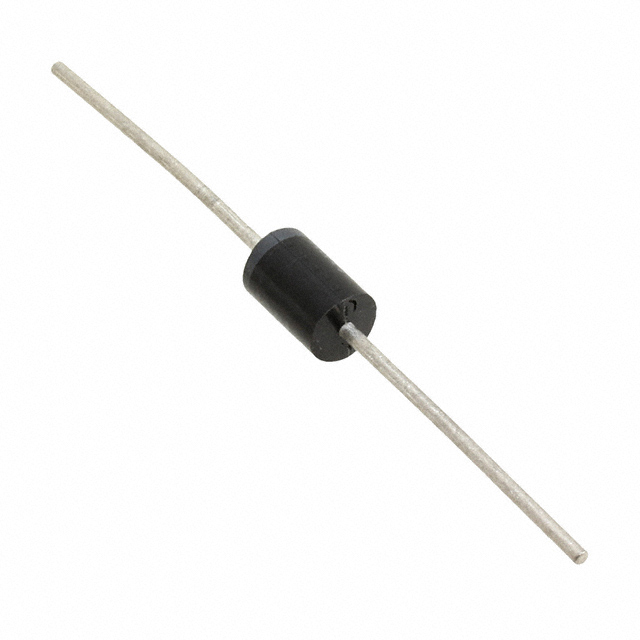

Do not risk expensive equipment and machinery from surges with this MRT100KP75AE3 TVS diode from Microsemi. This device&s;s maximum clamping voltage is 147 V and minimum breakdown voltage is 83.3 V. Its peak pulse power dissipation is 100000 W. Its maximum leakage current is 10 μA. Its test current is 5 mA. This TVS diode has an operating temperature range of -65 °C to 150 °C. This product comes packaged in bulk, so the parts will be stored loosely.
