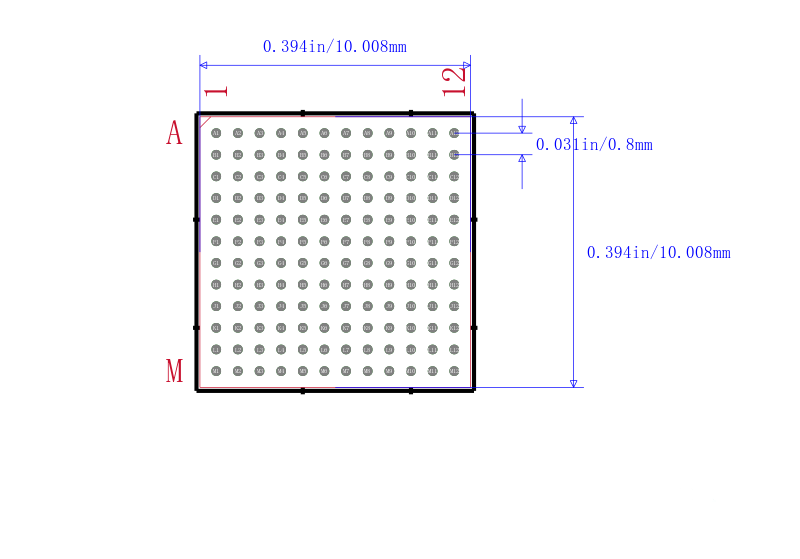

ADC, Flash Method, 12Bit, 1 Func, 8Channel, Serial Access, PBGA144, 10 X 10MM, 1.2MM HEIGHT, ROHS COMPLIANT, CTBGA-144
* Ultra-Low-Power Operation * 55mW per Channel at 50Msps * Single 1.8V Power Supply * Excellent Dynamic Performance * 69dBFS SNR at 5.3MHz * 140dBc/Hz Near-Carrier SNR at 1kHz Offset from a 5.3MHz Tone * 84dBc SFDR at 5.3MHz * 90dB Channel Isolation at 5.3MHz * User-Programmable Adjustment and Feature Selection through an SPI Interface * Serial LVDS Outputs with Programmable Current Drive and Internal Termination * Programmable Power Management * Internal or External Reference Operation * Single-Ended or Differential Clock Input * Programmable Output Data Format * Built-In Output Data Test Patterns * Small, 10mm x 10mm, 144-Lead CTBGA Package * Evaluation Kit Available Order MAX19527EVKIT+
