MAX5161MEZT

低功耗数字电位器 Low-Power Digital Potentiometers

General Description

The MAX5160/MAX5161 linear-taper digital potentiome ters perform the same function as a mechanical poten

tiometer or a variable resistor. They consist of a fixed resistor and a wiper contact with 32 tap points that are

digitally controlled by three lines for the 8-pin MAX5160 or by two lines for the 6-pin MAX5161.

Features

♦32 Tap Positions

♦50kΩ, 100kΩ, and 200kΩResistance Values

♦400ΩWiper Resistance

♦±25% Resistance Tolerance

♦3-Wire Serial Data Input

♦±1LSB DNL

♦±0.5LSB INL

♦100nA Supply Current

♦+2.7V to +5.5V Single-Supply Operation

♦Power-On Reset: Wiper Goes to Midscaleposition 16

♦±2kV ESD Protection

♦Small-Footprint Packages

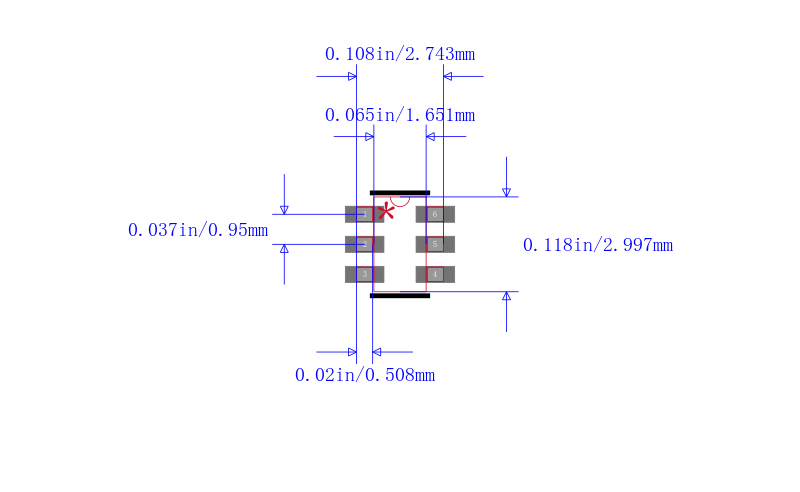

  6-Pin SOT23 MAX5161

  8-Pin µMAX MAX5160

♦Glitchless Switching Between the Resistor Taps

Applications

LCD Screen Adjustment

Volume Control

Mechanical Potentiometer Replacement
