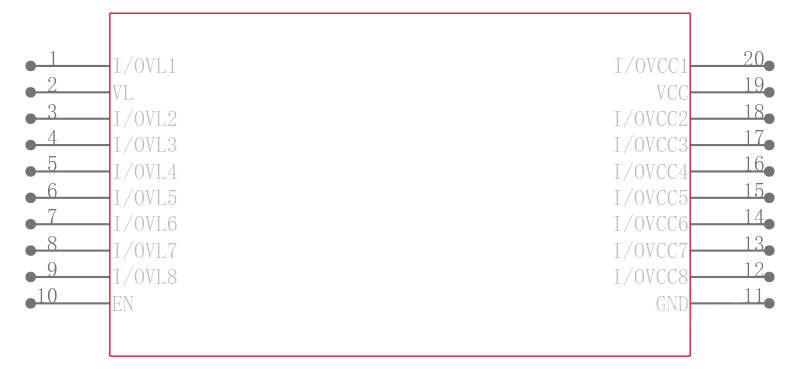

MAX3001EAUP-T

+1.2V to +5.5V, ±15kV ESD-Protected, 0.1μA, 35Mbps, 8Channel Level Translators

General Description

The MAX3000E/MAX3001E/MAX3002–MAX3012 8-channel level translators provide the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Logic signals present on the VL side of the device appear as a higher voltage logic signal on the VCC side of the device, and vice-versa. The MAX3000E/MAX3001E/MAX3002/MAX3003 use an

architecture specifically designed to be bidirectional without the use of a directional pin.

Features

♦ Guaranteed Data Rate Options

   230kbps MAX3000E

   4Mbps MAX3001E

   20Mbps MAX3002–MAX3012

♦ Bidirectional Level Translation Without Using a Directional Pin MAX3000E/MAX3001E/MAX3002/MAX3003

♦ Unidirectional Level TranslationMAX3004–MAX3012

♦ Operation Down to +1.2V on VL

♦ ±15kV ESD Protection on I/O VCC Lines MAX3000E/MAX3001E

♦ Ultra-Low 0.1µA Supply Current in Shutdown

♦ Low Quiescent Current < 10µA

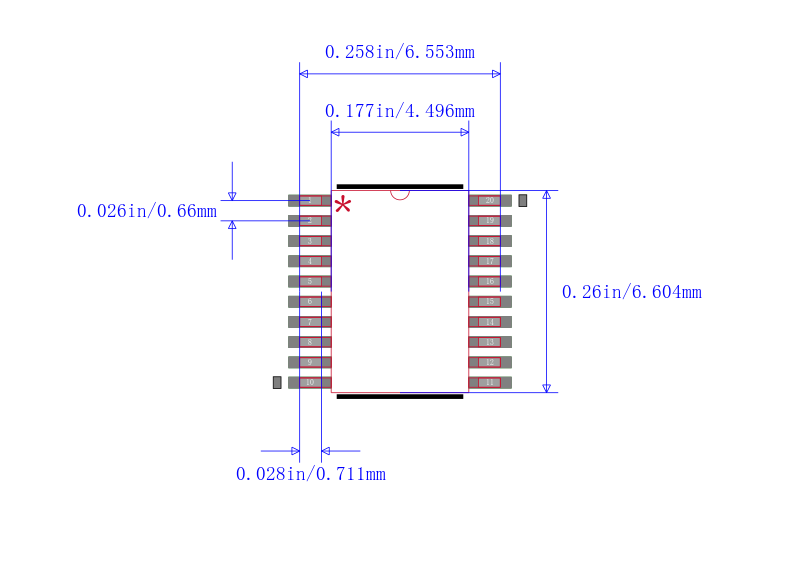

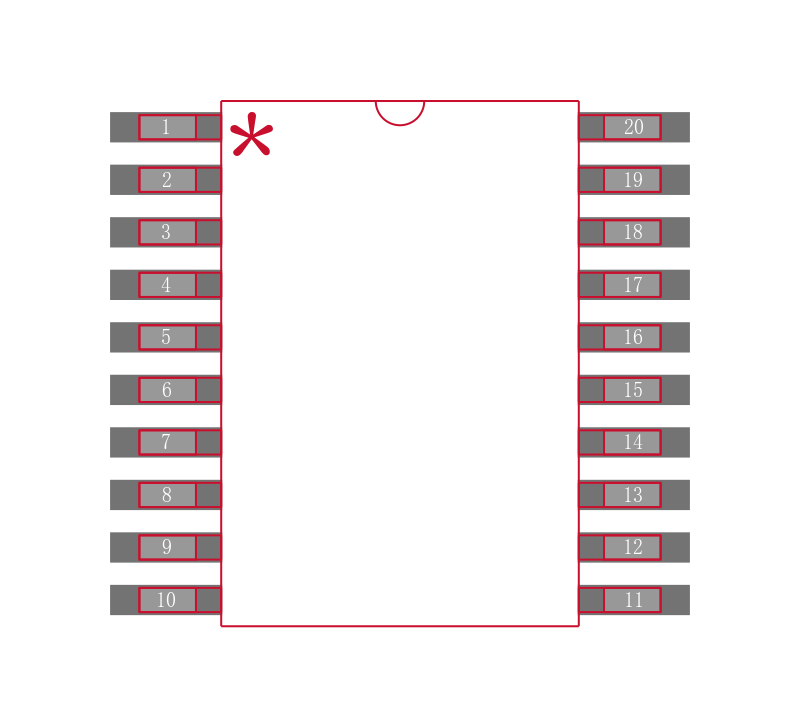

♦ UCSP, TQFN, and TSSOP Packages

Applications

CMOS Logic-Level Translation

Cellphones

SPI™ and MICROWIRE™ Level Translation

Low-Voltage ASIC Level Translation

Smart Card Readers

Cellphone Cradles

Portable POS Systems

Portable Communication Devices

Low-Cost Serial Interfaces

GPS

Telecommunications Equipment
