MXP4KE11A

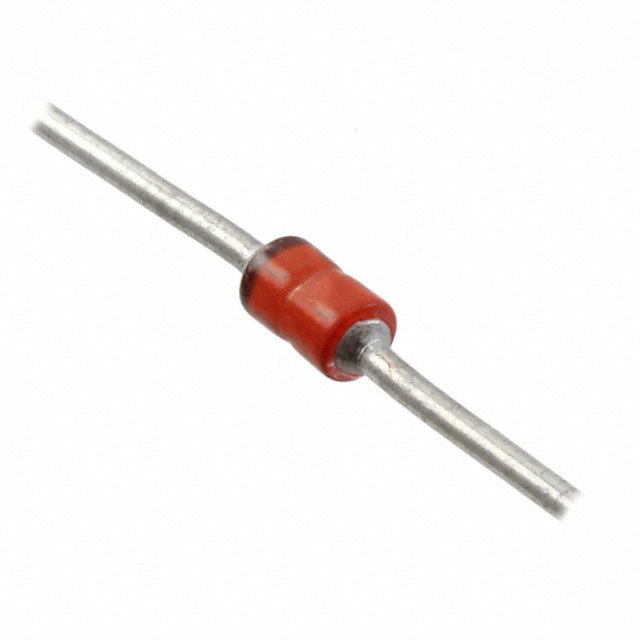

MXP4KE11A图片1
MXP4KE11A概述

DO-41 9.4V 400W

The family of high-reliability, plastic packaged Transient Voltage Suppressors offer high reliability at an affordable price. Standoff voltage values range from 5.8 to 342 volts and 5% or 10% tolerance options are available. Source control is standard and three increasingly stringent screening options for enhanced reliability are available. Source control is standard and three increasingly stringent screening options for enhanced reliability are available.


得捷:
TVS DIODE 9.4VWM 15.6VC DO41


艾睿:
Diode TVS Single Uni-Dir 9.4V 400W 2-Pin DO-41 Bag


MXP4KE11A中文资料参数规格
技术参数

钳位电压 15.6 V

最大反向电压(Vrrm) 9.4V

测试电流 1 mA

脉冲峰值功率 400 W

最小反向击穿电压 10.5 V

工作温度Max 150 ℃

工作温度Min -65 ℃

工作结温 -65℃ ~ 150℃

封装参数

安装方式 Through Hole

引脚数 2

封装 DO-204AL

外形尺寸

封装 DO-204AL

物理参数

工作温度 -65℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Bag

制造应用 通用

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

MXP4KE11A引脚图与封装图
MXP4KE11A引脚图
MXP4KE11A封装图
MXP4KE11A封装焊盘图
