M74HC4094M1R

8位国家知识产权局移位锁存器（ 3 -STATE ） 8 BIT SIPO SHIFT LATCH REGISTER 3-STATE

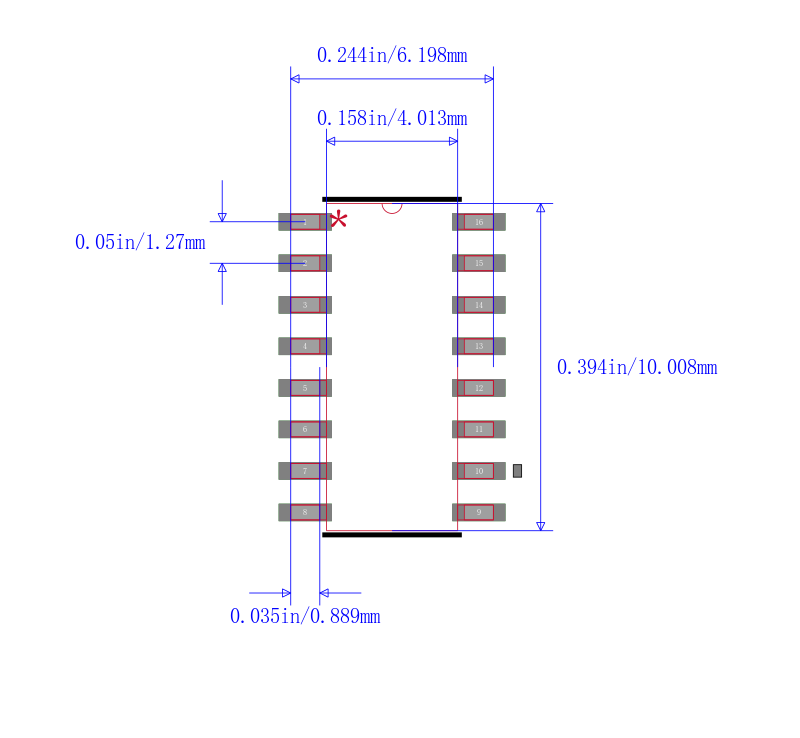

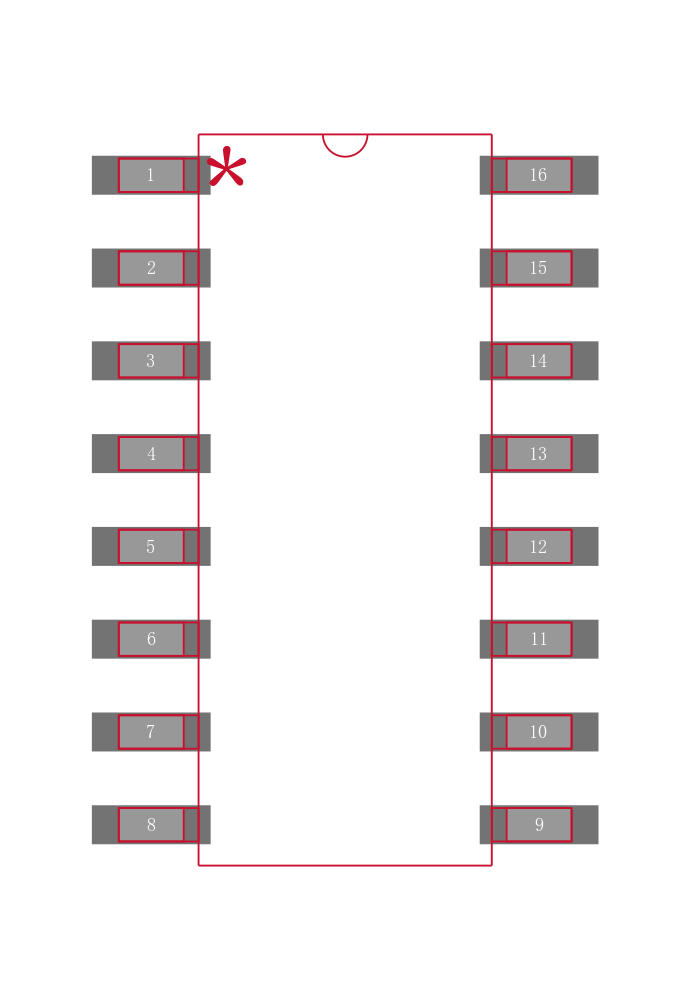

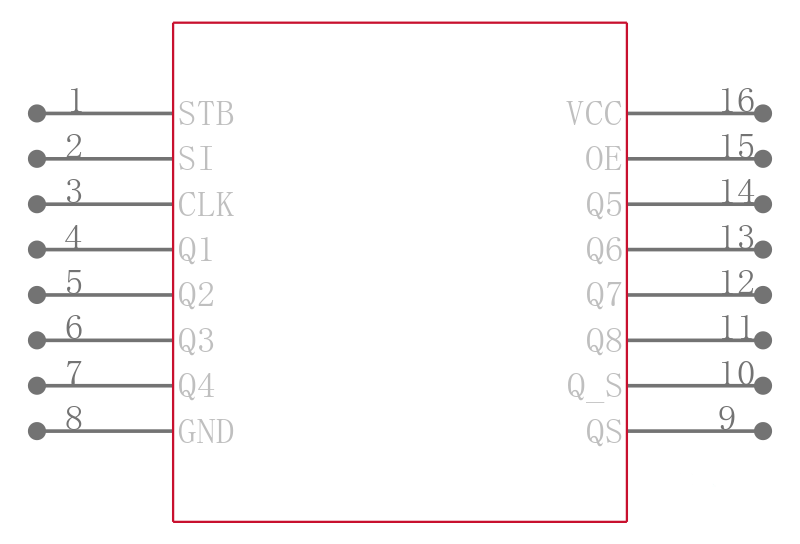

DESCRIPTION

The M54/74HC4094 is a high speed CMOS 8 BIT SIPOSHIFT LATCH REGISTERfabricated with silicon gate C2MOS technology.

It has the same high speed performance of LSTTL combined with true CMOS low power consumption. This device consists of an 8-bit shift register and an 8-bit latch with 3-state output buffer. Data is shifted serially through the shift register on the positive going transition of the clock input signal. The output of the last stage Qs can be used to cascade sev eral devices.

. HIGH SPEED

   fMAX = 73 MHz TYP. AT VCC = 5 V

. LOW POWER DISSIPATION

   ICC = 4 µA MAX. AT TA = 25°C

. HIGH NOISE IMMUNITY

   VNIH = VNIL = 28 % VCC MIN.

. OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS

. SYMMETRICAL OUTPUT IMPEDANCE

   |IOH| = IOL = 4 mA MIN.

. BALANCED PROPAGATION DELAYS

   tPLH = tPHL

. WIDE OPERATING VOLTAGE RANGE

   VCC OPR = 2 V TO 6 V

. PIN AND FUNCTION COMPATIBLE WITH 4094B
