1-of-16 Decoder/Demultiplexer with Address Latch High-Performance Silicon-Gate CMOS

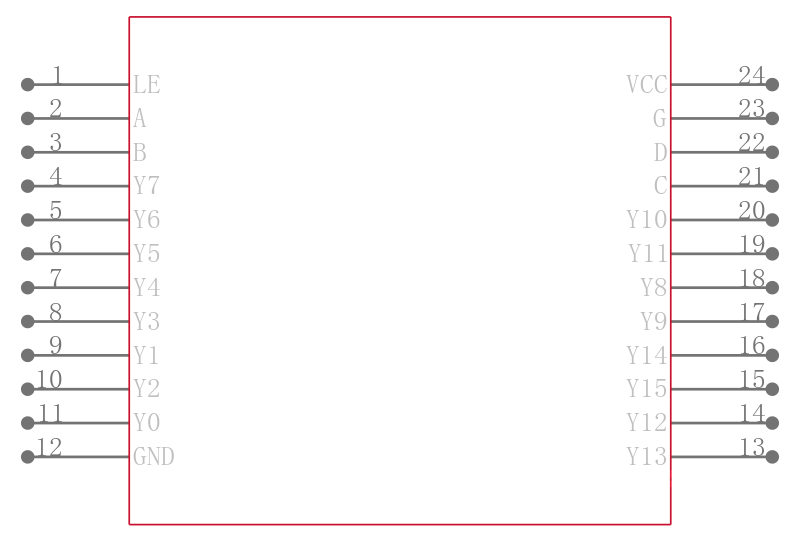

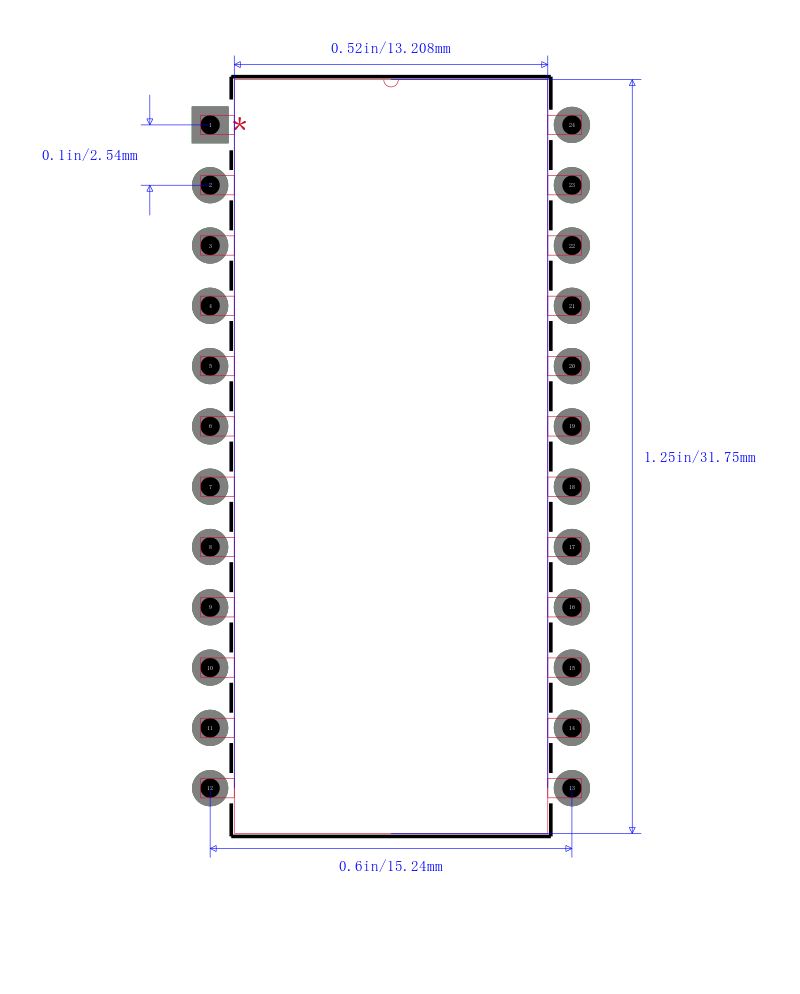

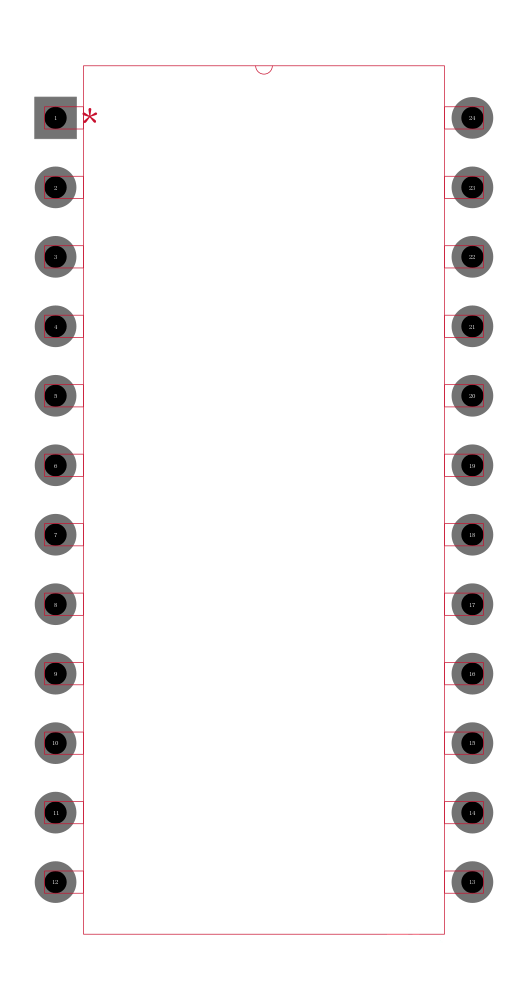

1-of-16 Decoder/Demultiplexer with Address Latch
High-Performance Silicon-Gate CMOS
The is identical in pinout to the MC14514B metal–gate CMOS device. The device inputs are compatible with standard CMOS outputs, with pullup resistors; they are compatible with LSTTL outputs.
This device consists of a 4–bit storage latch with a Latch Enable and Chip Select input. When a low signal is applied to the Latch Enable input, the Address is stored, and decoded. When the Chip Select input is high, all sixteen outputs are forced to a low level.
The Chip Select input is provided to facilitate the chip–select, demultiplex ing, and cascading functions.
The demultiplexing function is accomplished by using the Address inputs to select the desired device output, and then by using the Chip Select as a data input.
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 µA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 268 FETs or 67 Equivalent Gates
