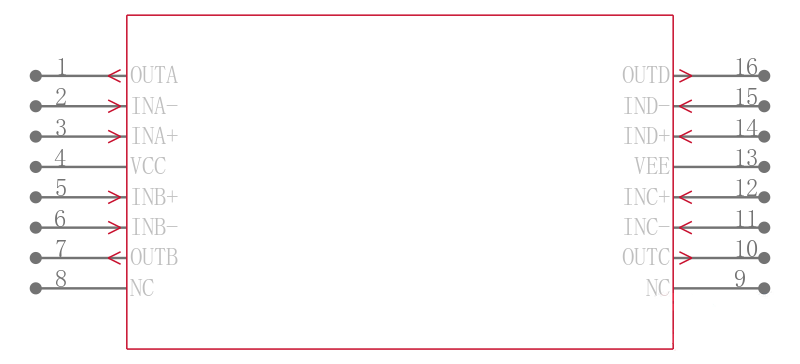

MAX4022EEE

低成本，高速，单电源， + 2的增益缓冲器具有轨到轨输出，SOT23封装 Low-Cost, High-Speed, Single-Supply, Gain of +2 Buffers with Rail-to-Rail Outputs in SOT23

General Description

The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 or -1 buffers featuring high slew rates, high output current drive, and low differential gain and phase errors. These single-supply devices operate from +3.15V to +11V, or from ±1.575V to ±5.5V dual supplies. The input voltage range extends 100mV beyond the negative supply rail and the outputs swing Rail-to-Rail®.

Features

♦ Internal Precision Resistors for Closed-Loop Gains of +2 or -1

♦ High Speed:

   200MHz -3dB Bandwidth

   30MHz 0.1dB Gain Flatness 6MHz min

   600V/µs Slew Rate

♦ Single 3.3V/5.0V Operation

♦ Outputs Swing Rail-to-Rail

♦ Input Voltage Range Extends Beyond VEE

♦ Low Differential Gain/Phase: 0.04%/0.02°

♦ Low Distortion at 5MHz:

   -78dBc Spurious-Free Dynamic Range

   -75dB Total Harmonic Distortion

♦ High Output Drive: ±120mA

♦ Low, 5.5mA Supply Current

♦ 400µA Shutdown Supply Current

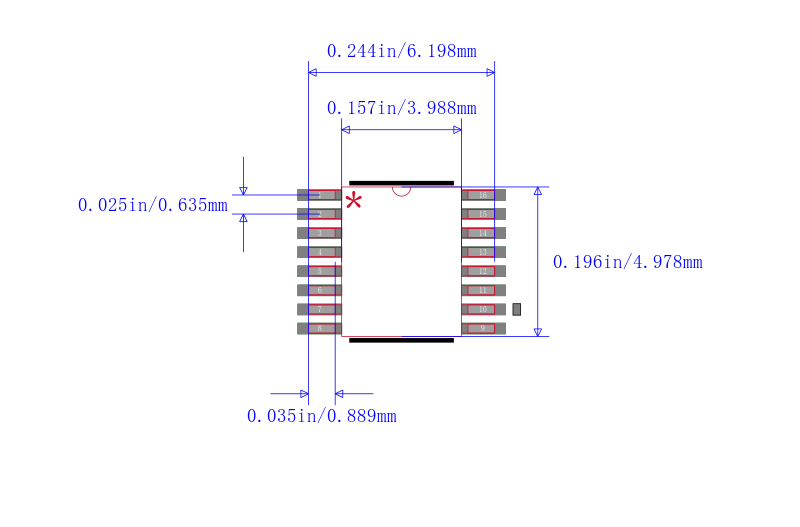

♦ Space-Saving SOT23-5, µMAX, or QSOP Packages

Applications

  Portable/Battery-Powered Instruments

  Video Line Driver

  Analog-to-Digital Converter Interface

  CCD Imaging Systems

  Video Routing and Switching Systems
