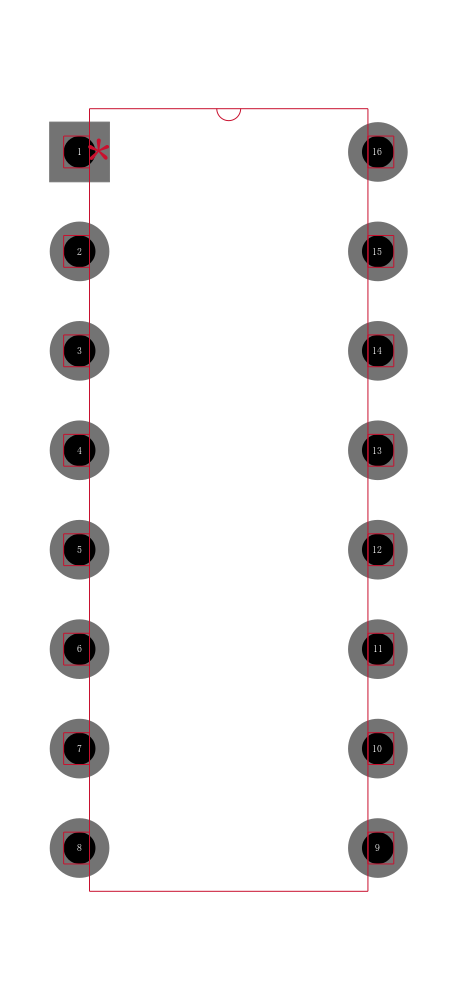

ANALOGMULTIPLEXER /解复用器： SINGLE8CHANNEL ，双4路， TRIPLE2CHANNEL ANALOGMULTIPLEXER/DEMULTIPLEXER: SINGLE8CHANNEL, DUAL 4CHANNEL, TRIPLE2CHANNEL
DESCRIPTION
These devices are analog multiplexer demultiplexers in high speed silicon gate C2MOS technology and they are pin compatible with the equivalent metal gate CMOS ”4000B” series. These analog switches are bidirectional and digitally controlled.
. LOW POWER DISSIPATION
ICC = 4 µA MAX. AT TA = 25 oC
. LOGIC LEVEL TRANSLATION TO ENABLE 5V LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL
. LOW ”ON” RESISTANCE:
70Ω TYP. VCC - VEE = 4.5 V
50Ω TYP. VCC - VEE = 9 V
. WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
. FAST SWITCHING: tpd = 15 ns TYP. AT TA = 25 oC
. LOW CROSSTALK BETWEEN SWITCHES
. HIGH ON/OFF OUTPUT VOLTAGE RATIO
. WIDE OPERATING VOLTAGE RANGE VCC - VEE = 2V TO 12V
. LOW SINE WAVE DISTORTION 0.02% AT VCC - VEE = 9V
. HIGH NOISE IMMUNITY
VNIH = VNIL = 28 % VCC MIN.
. PIN AND FUNCTION COMPATIBLE WITH HCC/HCF4051/4052/4053B
