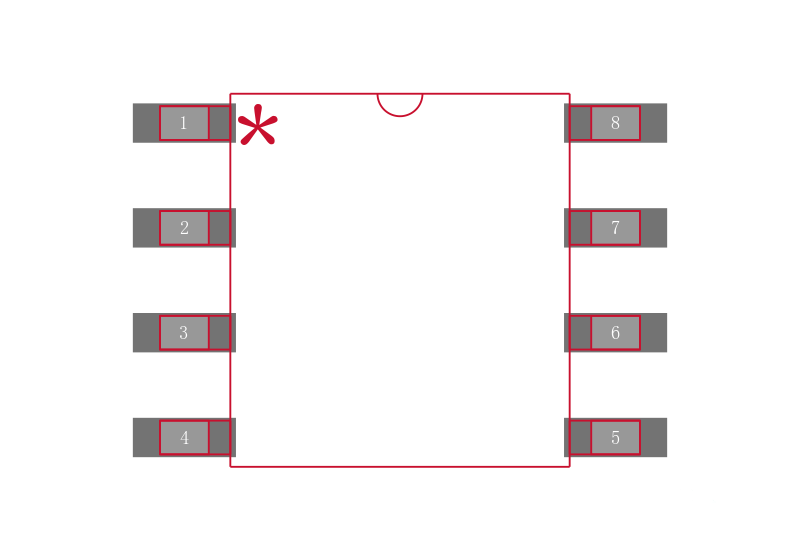

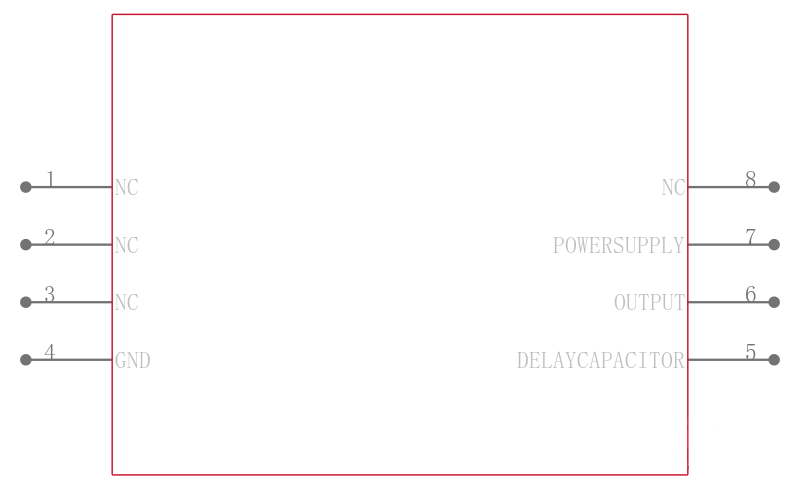

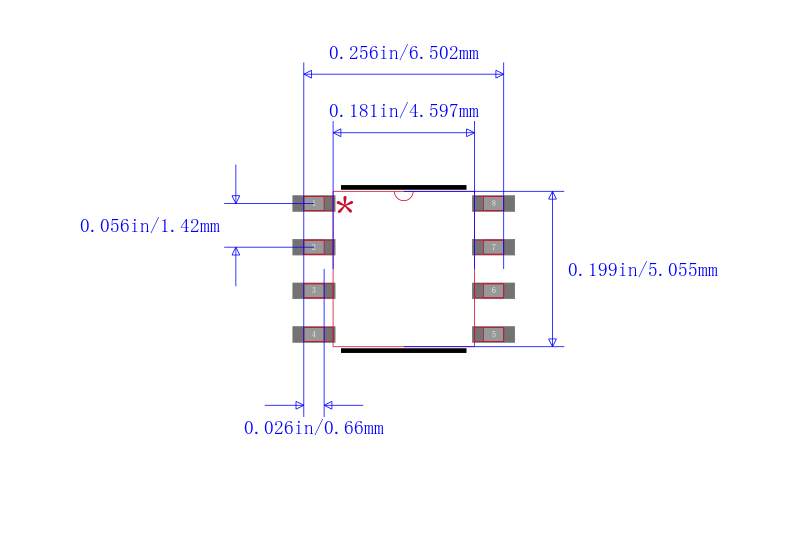

M51953BFP

Voltage Detector 4.05V to 4.45V 8Pin SOP

Description

M51953A,B/M51954A,B are semiconductor integrated circuits designed for detecting supply voltage and resetting all types of logic circuits such as CPUs. They include a built-in delay circuit to provide the desired retardation time simply by adding an external capacitor. They fined extensive applications, including battery checking circuit, level detecting circuit and waveform shaping

circuit.

Features

•  Few external parts

•  Large delay time with a capacitor of small capacitance td ≈100 ms, at 0.33 µF M51953, M51954

•  Low threshold operating voltage Supply voltage to keep low-state at low supply voltage:

0.6 V Typ at RL= 22 kΩ

•  Wide supply voltage range: 2 V to 17 V

•  Wide application range

Application

•  Reset circuit of Pch, Nch, CMOS, microcomputer, CPU and MCU, Reset of logic circuit, Battery check circuit, switching circuit back-up voltage, level detecting circuit, waveform shaping circuit, delay waveform generating circuit, DC/DC converter, over voltage protection circuit
