MAX6412UK26-T

低功耗，单/双电压复位电路，带有电容可调的复位超时周期 Low-Power, Single/Dual-Voltage uP Reset Circuits with Capacitor-Adjustable Reset Timeout Delay

General Description

The MAX6412–MAX6420 low-power microprocessor supervisor circuits monitor system voltages from 1.6V to 5V. These devices are designed to assert a reset signal whenever the VCCsupply voltage or RESET IN falls below its reset threshold or the manual reset input is asserted.

The reset output remains asserted for the reset timeout period after VCC and RESET IN rise above the reset threshold and the manual reset input is deasserted. The reset timeout is externally set by a capacitor to provide more flexibility.

Features

♦Monitor System Voltages from 1.6V to 5V

♦Capacitor-Adjustable Reset Timeout Period

♦Manual Reset Input MAX6412/MAX6413/MAX6414

♦Adjustable Reset Input Option MAX6415–MAX6420

♦Dual-Voltage Monitoring MAX6418/MAX6419/MAX6420

♦Low Quiescent Current 1.7µA, typ

♦3 RESET Output Options

    Push-Pull RESET

    Push-Pull RESET

    Open-Drain RESET

♦Guaranteed Reset Valid to VCC= 1V

♦Power-Supply Transient Immunity

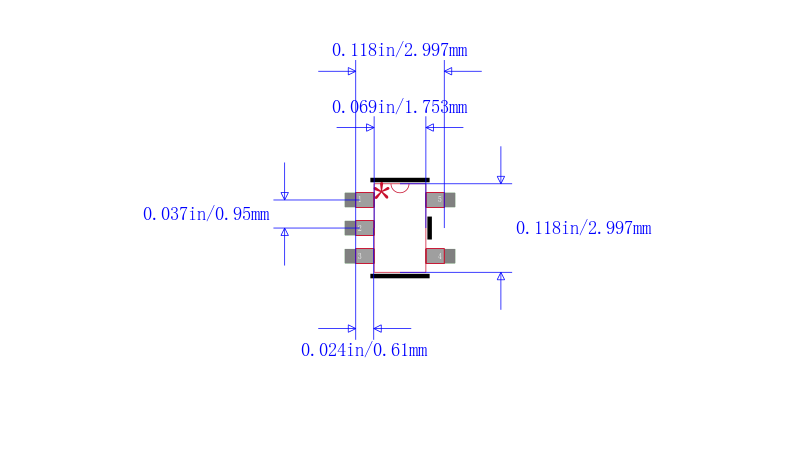

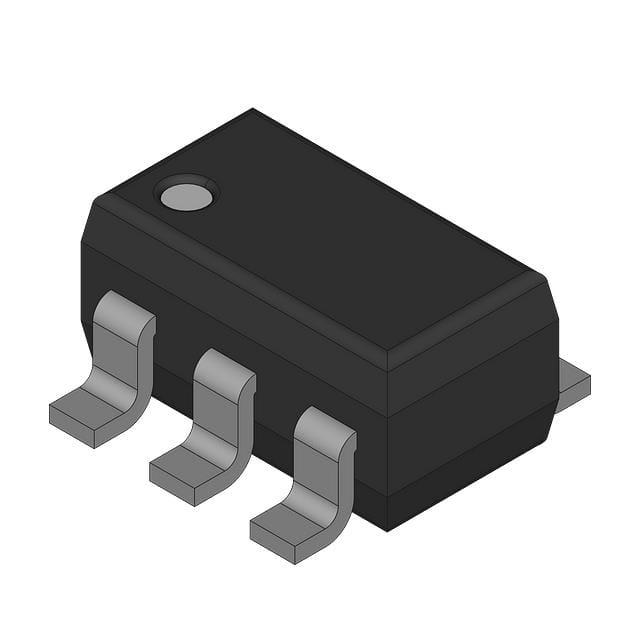

♦Small SOT23-5 Packages

Applications

Automotive

Medical Equipment

Intelligent Instruments

Portable Equipment

Battery-Powered Computers/Controllers

Embedded Controllers

Critical µP Monitoring

Set-Top Boxes

Computers
