MAX6703SKA-T

低电压， SOT23レP监控电路，带有电源失效输入/输出，手动复位及看门狗定时器 Low-Voltage, SOT23 レP Supervisors with Power- Fail In/Out, Manual Reset, and Watchdog Timer

General Description

The MAX6701–MAX6708 microprocessor µP supervisory circuits reduce the complexity and components required to monitor power-supply functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX6701–MAX6708 family provides four functions: a reset output during power-up, power-down, and brownout conditions; an independent watchdog output that goes low if the watchdog input has not been toggled within 1.6s; a 0.62V threshold detector for power-fail warning; and an active-low manual reset input.

Features

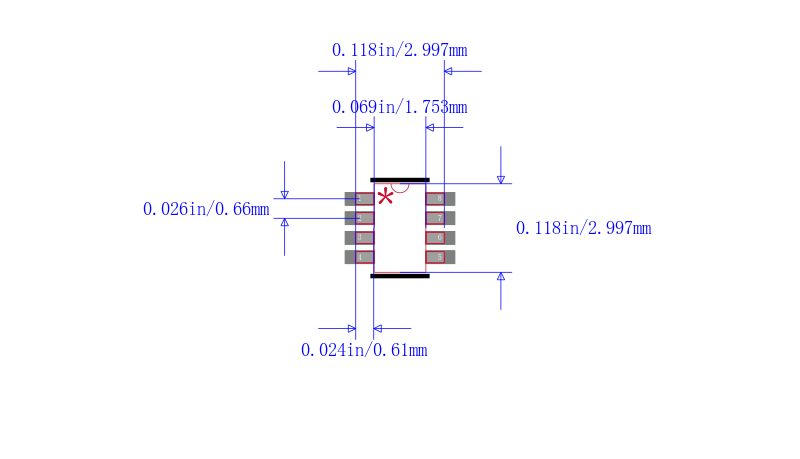

♦ Small 8-Pin SOT23 Package

♦ Precision Monitoring of +5.0V, +3.3V, +3.0V, +2.5V

Supply Voltages

♦ 140ms Reset Timeout Delay

♦ Power-Fail Input with Independent Output; Monitor Inputs Down to 0.62V MAX6704–MAX6708

♦ Dual Adjustable Reset Input for Triple-Voltage Monitoring MAX6701A/MAX6702A/MAX6703A

♦ 1.6s Watchdog Timeout Period MAX6701A–MAX6707A

♦ Independent Watchdog Output MAX6701A/MAX6702A/MAX6703A/MAX6705A/MAX6706A/MAX6707A

♦ Manual Reset Input

♦ Four Reset Output Stage Options

   Active Low Push-Pull MAX6701A, MAX6705A

   Active Low Open Drain MAX6703A, MAX6707A

   Active High Push-Pull MAX6702A, MAX6706A

   Dual Active Low/High Push-Pull MAX6704,MAX6708

♦ Guaranteed Reset Valid to VCC = 1V

♦ Immune to Short Falling VCC Transients

♦ Low Cost, Few External Components

Applications

Computers

Controllers

Intelligent Instruments

Automotive Systems

Critical µP Power Monitoring

White Goods

Networking

Telecommunications
