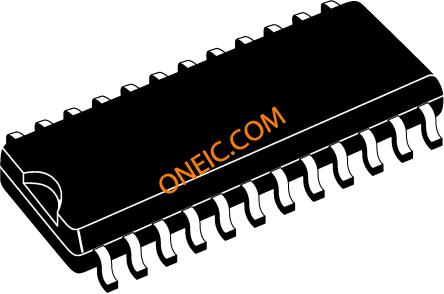

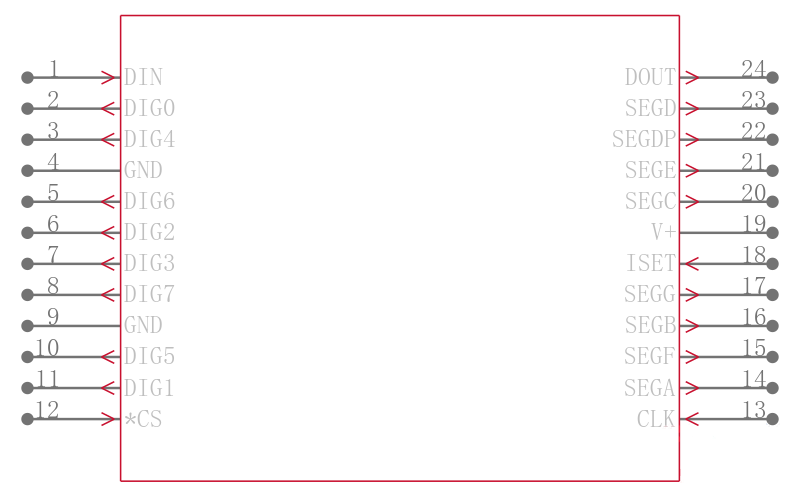

MAX7221CWG

串行接口， 8位LED显示驱动器 Serially Interfaced, 8-Digit LED Display Drivers

General Description

The MAX7219/MAX7221 are compact, serial input/output common-cathode display drivers that interface microprocessors µPs to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. The MAX7221 is compatible

with SPI™, QSPI™, and Microwire™, and has slew-rate limited segment drivers to reduce EMI.

Features

♦10MHz Serial Interface

♦Individual LED Segment Control

♦Decode/No-Decode Digit Selection

♦150µA Low-Power Shutdown Data Retained

♦Digital and Analog Brightness Control

♦Display Blanked on Power-Up

♦Drive Common-Cathode LED Display

♦Slew-Rate Limited Segment Drivers

for Lower EMI MAX7221

♦SPI, QSPI, Microwire Serial Interface MAX7221

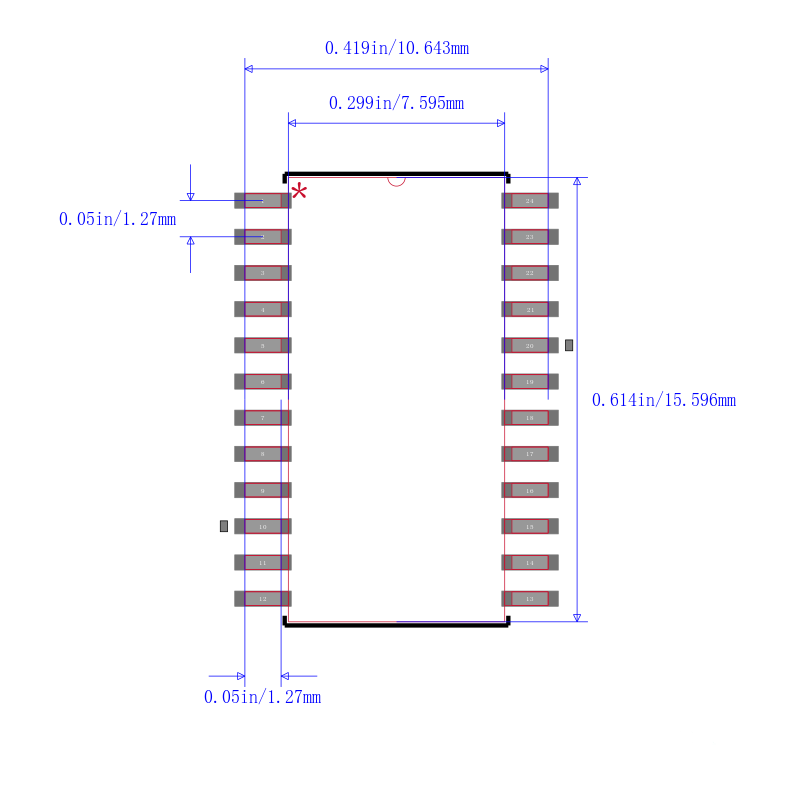

♦24-Pin DIP and SO Packages
