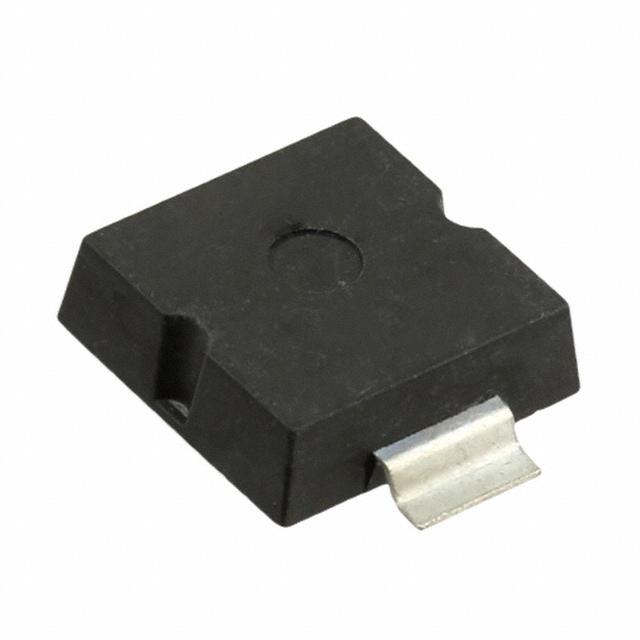

MPLAD30KP170CA

ESD 抑制器/TVS 二极管 Bi-Directional TVS

These high power 30 kW rated transient voltage suppressors in a surface mount package are provided with design features to minimize thermal resistance and cumulative heating. They are particularly effective at meeting the multi-stroke lightning standard RTCA DO-160, section 22 for aircraft design. This efficient low profile package design is offered in standoff voltage selections Vwm of 14 volt to 400 volts in either unidirectional or bidirectional construction.

立创商城:
Vrwm:170V 30kW

贸泽:
ESD 抑制器/TVS 二极管 Bi-Directional TVS

艾睿:
This MPLAD30KP170CA TVS diode from Microsemi protects against overvoltages. This device&s;s maximum clamping voltage is 275 V and minimum breakdown voltage is 189 V. Its maximum leakage current is 10 μA. Its test current is 5 mA. Its peak pulse power dissipation is 30000 W. This TVS diode has an operating temperature range of -55 °C to 150 °C.
