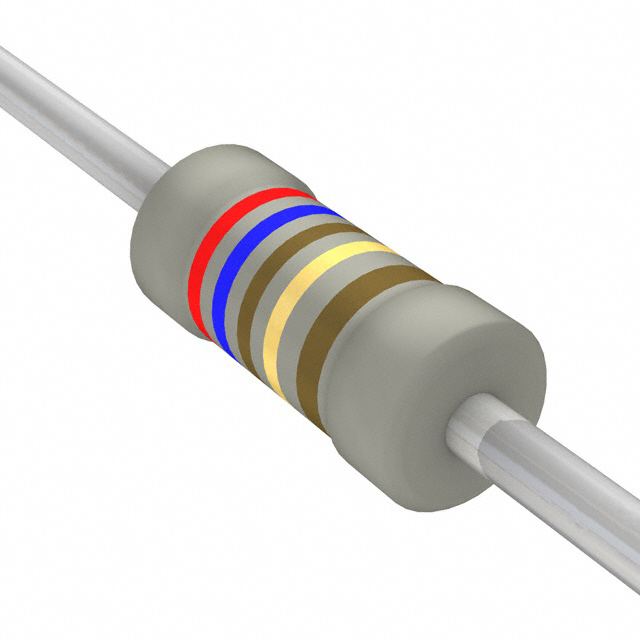

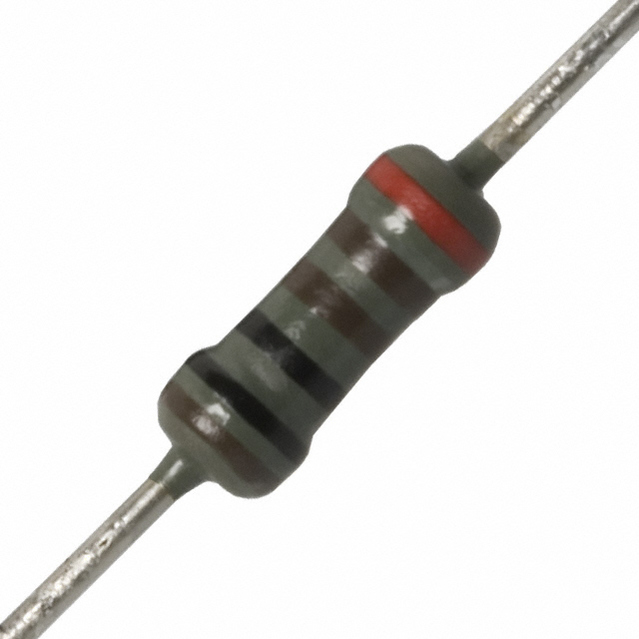

通孔电阻器, 1 kohm, MRS25系列, 600 mW, ± 1%, 轴向引线, 350 V
The MRS25 series Professional Resistor is suitable for general purpose applications. A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper are welded to the end-caps. The resistor is coated with lacquer which provides electrical, mechanical and climatic protection. Four or five colour code rings designate the resistance value and tolerance according to IEC 60062. The suitable replacement for MRS25 is MBB/SMA 0207 professional.
232215631002
- .
- Metal Film technology
- .
- Low noise
- .
- 1R to 10MR Resistance range
额定电压DC 350 V
容差 ±1 %
额定功率 0.6 W
产品系列 MRS25
电阻 1 KΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 350 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 6.50 mm
宽度 2.50 mm
直径 Φ2.50mm
封装 Axial
工作温度 -55℃ ~ 155℃
温度系数 ±50 ppm/℃
包装方式 Tape & Reel TR
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MRS25000C1001FRP00 VISHAY 威世 | 当前型号 | 当前型号 |
MRS25000C1001FCT00 威世 | 完全替代 | MRS25000C1001FRP00和MRS25000C1001FCT00的区别 |
LR1F1K0 泰科 | 类似代替 | MRS25000C1001FRP00和LR1F1K0的区别 |
