MMA 0204 - 专业高级薄膜技术 极佳的整体稳定性：高于 0.25 类 强力配合钢顶盖，镍挡板镀锡 镍挡板层纯锡端接 与无铅和含铅焊接工艺兼容Case Type | 0204 ---|--- Technology | Thin Film Resistance Tolerance | 1% Power Rating | 0.25W Temperature Coefficient | 50 ppm/°C Operating Temperature | -55 → 125 °C ### 认可EN 140401-803### 认可EN 140401-803金属电极无导线平面 SMT 电阻器
MMA 0204 - 专业
高级薄膜技术
极佳的整体稳定性：高于 0.25 类
强力配合钢顶盖，镍挡板镀锡
镍挡板层纯锡端接
与无铅和含铅焊接工艺兼容
Case Type | 0204
---|---
Technology | Thin Film
Resistance Tolerance | 1%
Power Rating | 0.25W
Temperature Coefficient | 50 ppm/°C
Operating Temperature | -55 → 125 °C
### 认可
EN 140401-803
欧时:

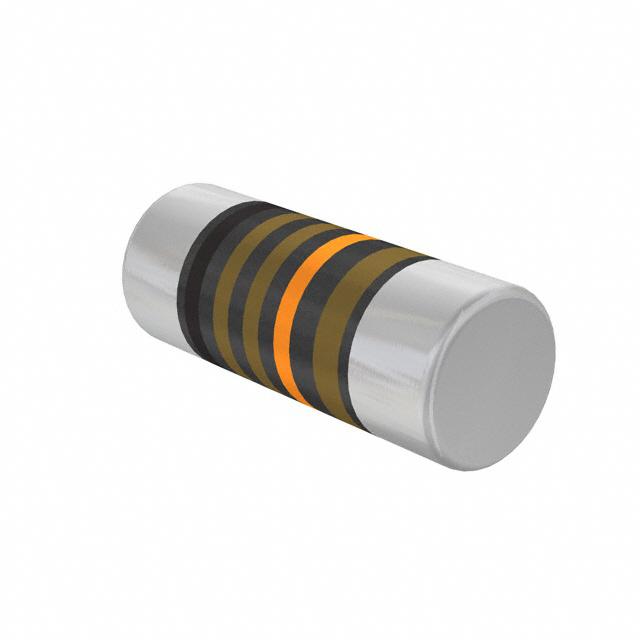

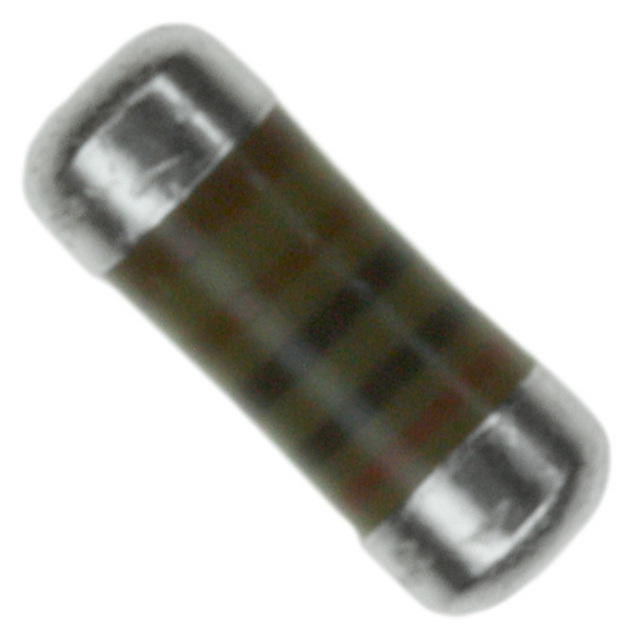

Vishay MMA0204 系列 0.25W 2kΩ 精密薄膜SMD 电阻器 MMA02040C2001FB300, ±1%, ±50ppm/°C, 0204 MELF 封装
立创商城:
2kΩ ±1% 400mW
e络盟:
电阻, 金属电极无限面MELF 表面贴装, 2 kohm, MMA 0204 Series, 200 V, 薄膜, 250 mW, ± 1%
艾睿:
Use this MMA02040C2001FB300 fixed single surface-mount resistor from Vishay to obtain a visually clean layout. This product has a resistance value of 2K Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±50 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 1%. This device utilizes thin film technology. This product is 3.6 mm long.
TME:

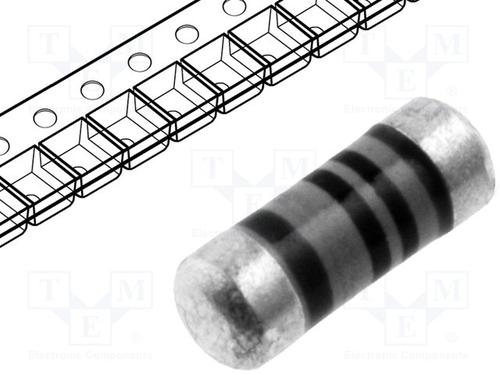

Resistor: thin film; SMD; 0204 minimelf; 2kΩ; 0.4W; ±1%; Ø1.5x3.6mm
Verical:
Res Thin Film 02041406 2K Ohm 1% 0.25W1/4W ±50ppm/C Sulfur Resistant Melf Pad SMD Automotive Medical T/R
儒卓力:
**MM0204 2K 1% 0,4W TK50 **
