MELF电阻器
MELF器
欧时:

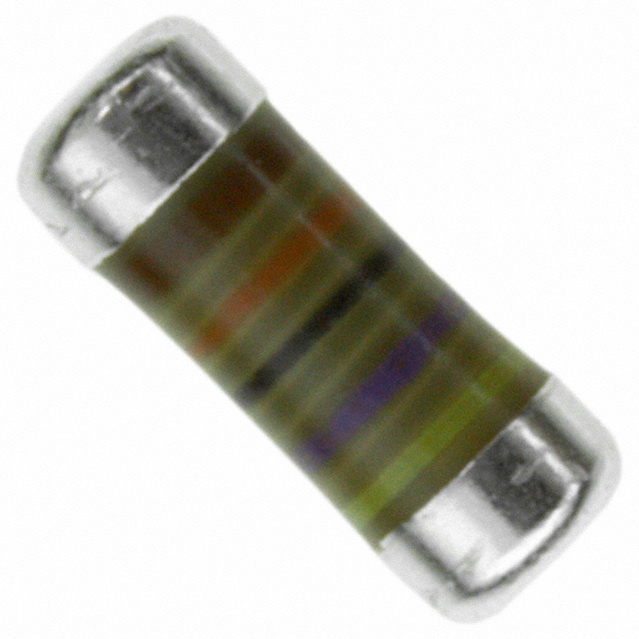

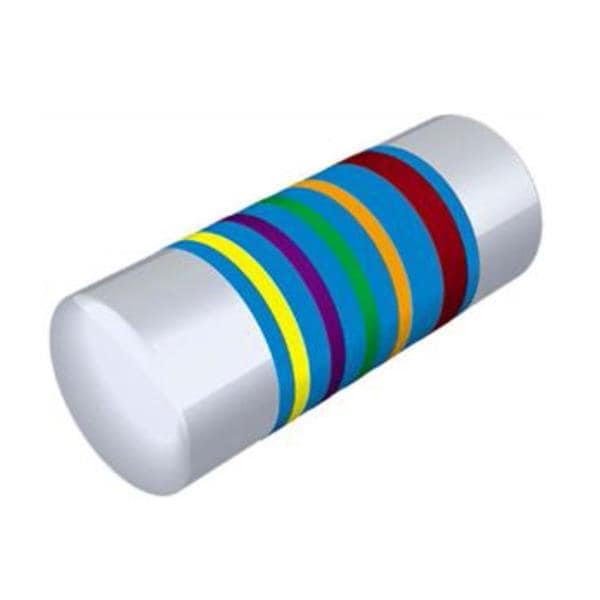

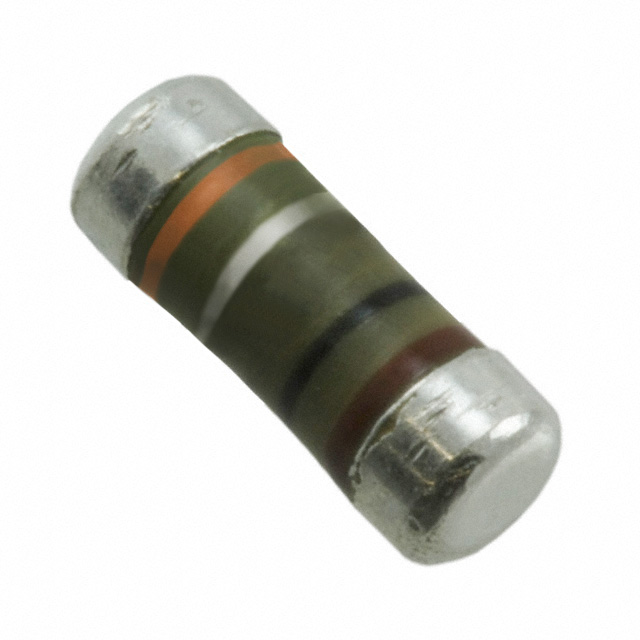

Vishay MMB0207 系列 0.4W 4.7Ω 薄膜 精密薄膜SMD 电阻器 MMB02070C4708FB200, ±1%, ±50ppm/°C
e络盟:
电阻, 金属电极无限面MELF 表面贴装, 4.7 ohm, MMB 0207系列, 300 V, 金属膜, 1 W, ± 1%
艾睿:
Res Thin Film 02072309 4.7 Ohm 1% 0.4W ±50ppm/°C Sulfur Resistant Melf Pad SMD Automotive Medical T/R
立创商城:
4.7Ω ±1% 1W
TME:
Resistor: thin film; SMD; 0207 melf; 4.7Ω; 1W; ±1%; Ø2.2x5.8mm
Verical:
Res Thin Film 02072309 4.7 Ohm 1% 0.4W ±50ppm/C Sulfur Resistant Melf Pad SMD Automotive Medical T/R
儒卓力:
**MM0207 4,7R 1% 1W TK50 **
额定电压DC 300 V
额定电压AC 300 V
工作电压 300 V
容差 ±1 %
额定功率 1 W
产品系列 Vishay_Beyschlag
电阻 4.7 Ω
阻值偏差 ±1 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Surface Mount
引脚数 2
封装 MELF, 0207
长度 5.8 mm
直径 2.20 mm
封装 MELF, 0207
工作温度 -55℃ ~ 155℃
温度系数 ±50 ppm/℃
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
