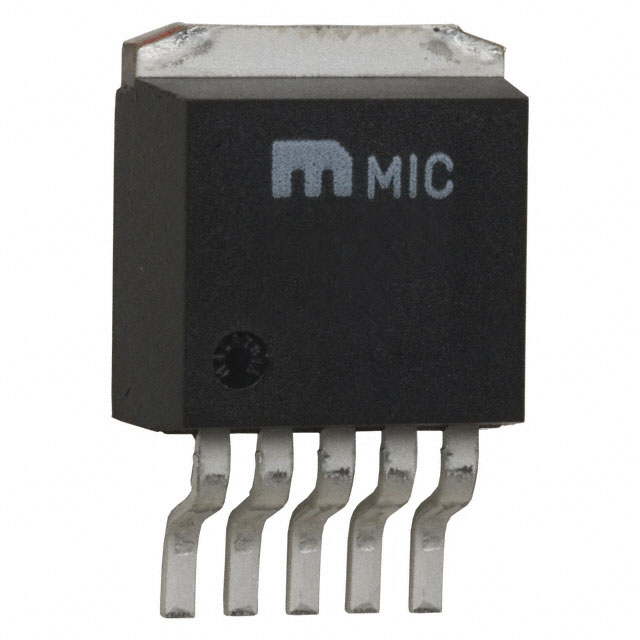

IC REG LDO ADJ 1.5A TO263-5
General Description
The MIC39150, MIC39151, and MIC39152 are 1.5A LDO voltage regulators that provide a low voltage, high current output with a minimum of external components. Utilizing ’s proprietary Super βeta PNP® pass element, the MIC39150/1/2 offers extremely low dropout typically 375mV at 1.5A and low ground current typically 17mA at 1.5A.
The MIC39150/1/2 are ideal for PC add-in cards that need to convert from 3.3V to 2.5V or 2.5V to 1.8V with a guaranteed maximum dropout voltage of 500mV over all operating conditions. The MIC39150/1/2 exhibit fast transient response for heavy switching applications and requires only 10µF of output capacitance to maintain stability and achieve fast transient response.
Features
• 1.5A minimum guaranteed output current
• 500mV maximum dropout voltage over temperature
–Ideal for 3.0V to 2.5V conversion
–Ideal for 2.5 to 1.8V or 1.65V conversion
• 1% initial accuracy
•Low ground current
• Current limiting and Thermal shutdown
• Reversed-battery and reversed lead insertion protection
•Reversed-leakage protection
• Fast transient response
• TTL/CMOS compatible enable pin MIC39151/2 only
• Error flag output MIC39151 only
• Adjustable output MIC39152 only
• Power D-Pak package TO-252 Adjustable only
• Power D2Pak package TO-263
Applications
• Low-voltage digital ICs
• LDO linear regulator for PC add-in cards
• High-efficiency linear power supplies
• SMPS post regulator
• Low-voltage microcontrollers
• StrongARM™ processor supply
