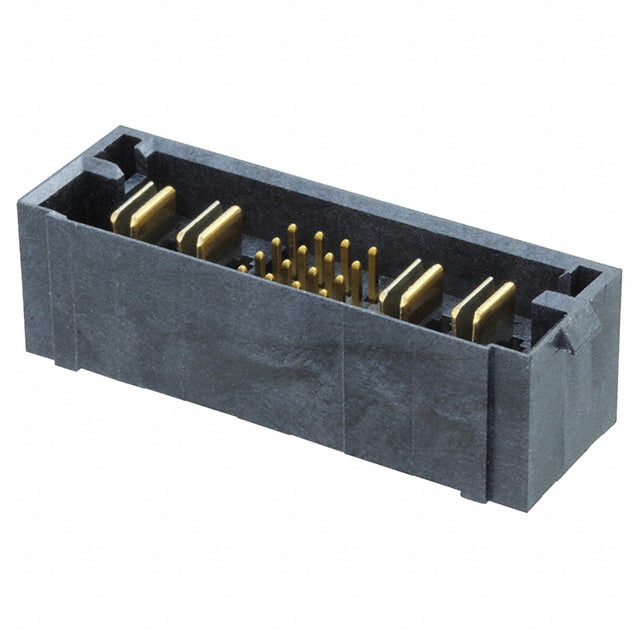

MPTC-02-16-02-6.30-01-L-V

板至板连接, 20 触点, 针座, MPTC Series, 通孔安装, 4 排

There won"t be any energy loss when you power up your circuit using the power connector from . This HDR connector"s 4power / 16signal contacts that are made out of copper alloy/phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 424VDC|300 VAC. This connector has a single port. It has a straight body orientation. MPTC-02-16-02-6.30-01-L-V is housed in liquid crystal polymer. This device has a maximum current rating of 28.8 A/contact. This power connector has an operating temperature range of -55 °C to 105 °C. Its 40 terminals use the solder termination method. This product is 12.45 mm deep.
