MAL203859228E3

铝电容器径向标准超微型 Aluminum Capacitors Radial Standard Ultra Miniature

The Vishay 038 RSU series is radial leaded, ultra miniature, standard aluminium electrolytic capacitors. These capacitors are available in standard capacitance value ranging from 2.2µF to 22000µF and ±20% tolerance. Typical applications include audio, video, mobile equipments and general purpose electronic circuits.

222203859228

.

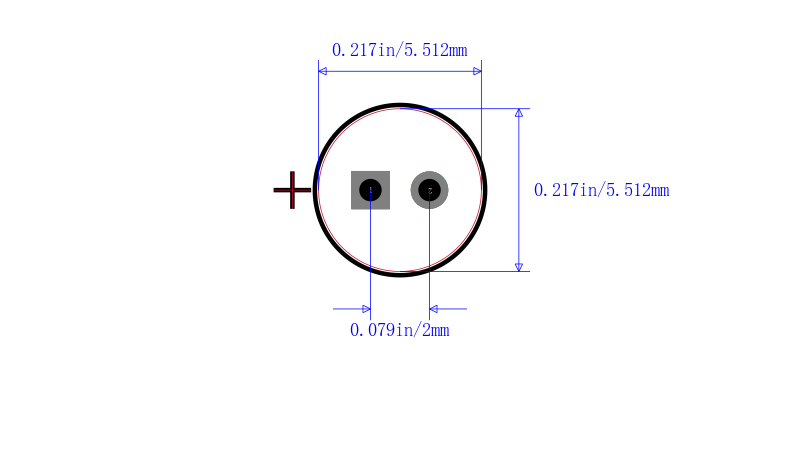

Nominal case sizes varies from 5mm x 11mm to 18mm x 40mm

.

Voltage rating of 6.3V to 100V

.

Polarized aluminium electrolytic capacitors, non solid electrolyte

.

Cylindrical aluminium case insulated with a blue sleeve

.

Pressure relief for case Ø D >=6.3mm

.

Charge and discharge proof

.

Miniaturized, high CV product per unit volume

.

Endurance test at 85°C is 2000hours case size Ø D <= 8mm, 3000hours case size Ø D >= 10mm

.

Operating temperature range -40°C to +85°C
