MAL203859471E3

铝电容器径向标准超微型 Aluminum Capacitors Radial Standard Ultra Miniature

038 RSU 系列径向

超微型径向电解器

用蓝色乙烯基套管绝缘

一般用途，工业、汽车、消费类和音频-视频

电容容差 % | 20

---|---

工作温度 °C | -40 至 +85

85°C 时的预期寿命 | 2500 小时 ≤ 8mm 直径

3500 小时 ≥ 10mm 直径

欧时:

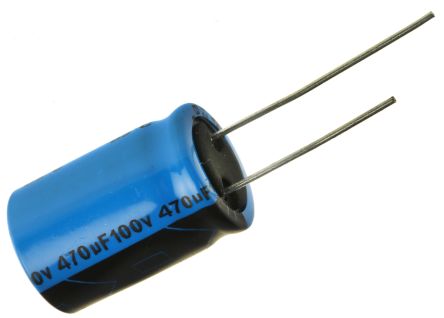

Capacitor Aluminium 038 RSU 100V 470uF

立创商城:
470uF ±20% 100V

e络盟:
铝电解电容, 微型, 470 µF, 100 V, 038 RSU系列, ± 20%, 径向引线, 16 mm

艾睿:
This electrolytic MAL203859471E3 aluminum capacitor from Vishay has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The MAL203859471E3 aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 470uF. Its leakage current is 470@2Min μA. This product is 25 mm tall with a diameter of 16 mm.
