专业薄膜MELF电阻器 Professional Thin Film MELF Resistors
MMA 0204 - 专业
高级薄膜技术
极佳的整体稳定性：高于 0.25 类
强力配合钢顶盖，镍挡板镀锡
镍挡板层纯锡端接
与无铅和含铅焊接工艺兼容
外壳类型 | 0204
---|---
技术 | 薄膜
容差 | 1%
额定功率 | 0.25W
温度系数 | 50 ppm/°C
工作温度 | -55 → 125 °C
### 认可
EN 140401-803
欧时:

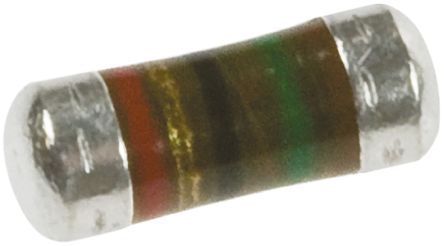

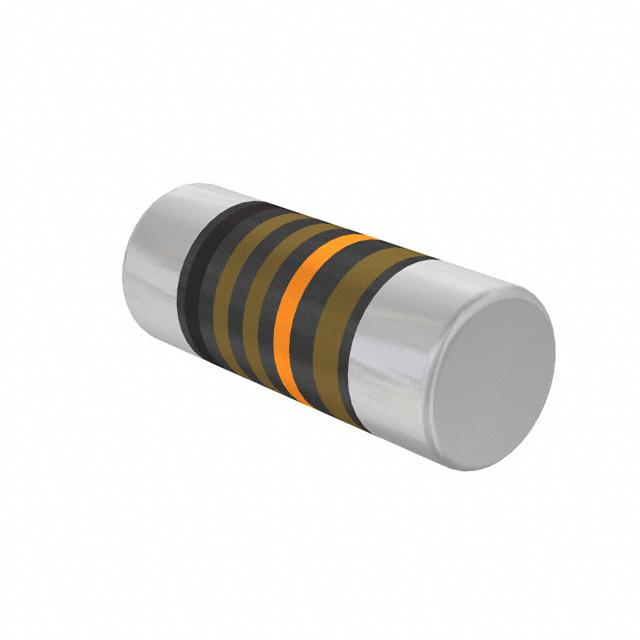

Vishay MMA0204 系列 0.25W 499kΩ 精密薄膜SMD 电阻器 MMA02040C4993FB300, ±1%, ±50ppm/°C, 0204 MELF 封装
立创商城:
499kΩ ±1% 400mW
艾睿:
The MMA02040C4993FB300 fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 499K Ohm. Its temperature coefficient is ±50 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.6 mm long. This device utilizes thin film technology. It has a tolerance of 1%. This part has an operating temperature of -55 to 125 °C.
TME:
Resistor: thin film; SMD; 0204 minimelf; 499kΩ; 0.4W; ±1%; 50ppm/°C
Verical:
Res Thin Film 02041406 499K Ohm 1% 0.25W1/4W ±50ppm/C Sulfur Resistant Melf Pad SMD Automotive Medical T/R
