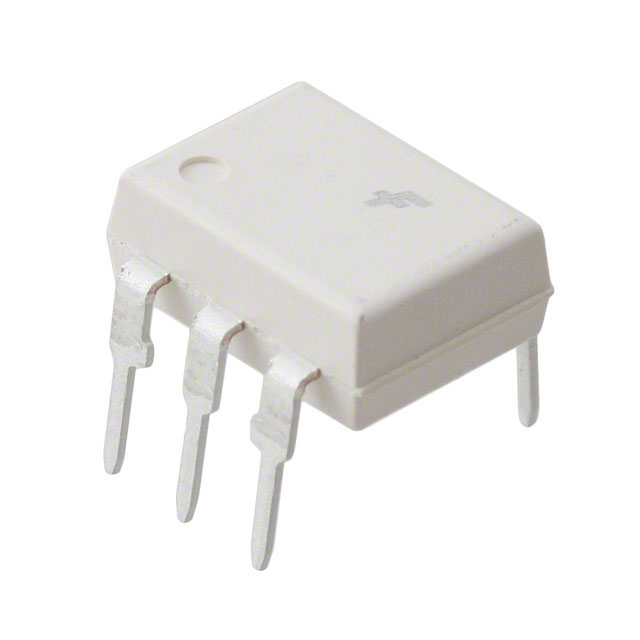

MOC3020M: 三端双向可控硅驱动器输出光耦合器,6 引脚 DIP 400V 随机相位
The MOC301XM and MOC302XM series are optically isolated triac driver devices. These devices contain a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 V
Features
---
|
通道数 1
正向电压 1.15 V
耗散功率 330 mW
隔离电压 4170 Vrms
保持电流 100 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 280 VAC
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 330 mW
安装方式 Through Hole
引脚数 6
封装 PDIP-6
封装 PDIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bag
制造应用 Consumer Appliances, Industrial Motor
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MOC3020VM ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MOC3063SR2M 安森美 | 类似代替 | MOC3020VM和MOC3063SR2M的区别 |
MOC3052 光宝 | 功能相似 | MOC3020VM和MOC3052的区别 |
MOC3041M 安森美 | 功能相似 | MOC3020VM和MOC3041M的区别 |
