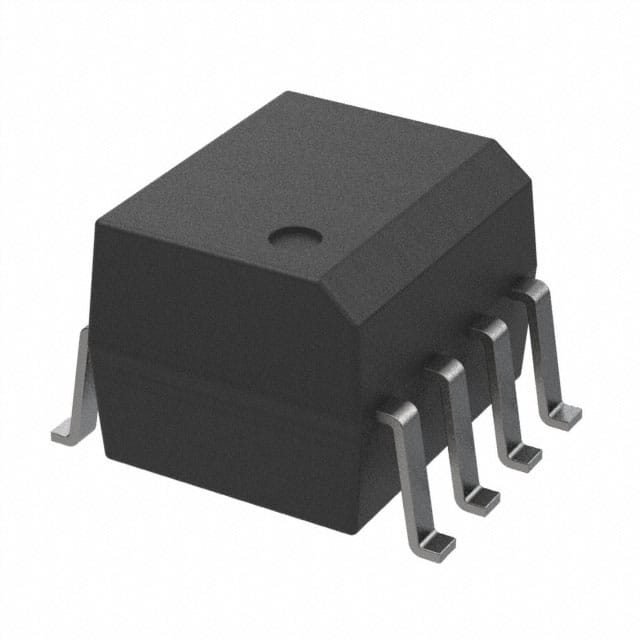

MOC205M

光电耦合器, 1通道, SOIC, 8 引脚, 60 mA, 2.5 kV, 40 %

These devices consist of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector, in a surface mountable, small outline, plastic package. They are ideally suited for high-density applications, and eliminate the need for through-the-board mounting.

Features

---

 |

.

Closely Matched Current Transfer Ratios

.

Minimum BVCEO of 70 V Guaranteed

.

, MOC206M, MOC207M

.

Minimum BVCEO of 30 V Guaranteed

.

MOC211M, MOC212M, MOC213M, MOC216M,MOC217M

.

Low LED Input Current Required for Easier Logic Interfacing

.

MOC216M, MOC217M

.

Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing

.

Safety and Regulatory Approvals:

.

UL1577, 2,500 VACRMS for 1 Minute

.

DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage
