MJD127TF

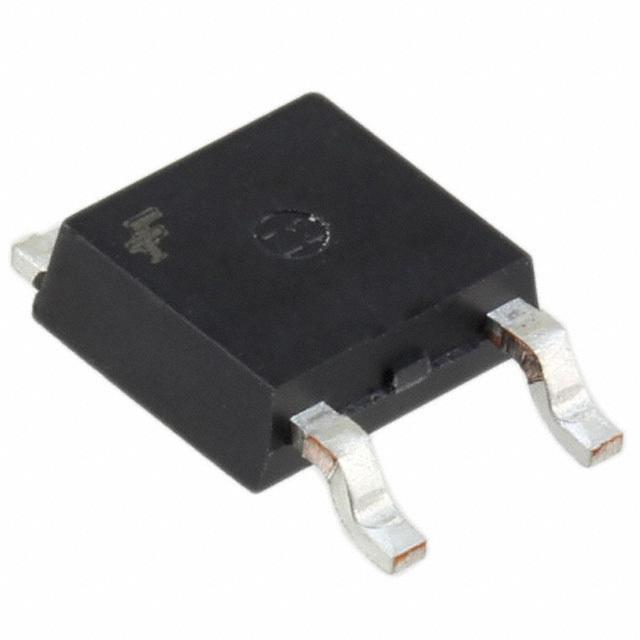

MJD 系列 PNP 1.75 W 100 V 8 A 表面贴装 硅 达林顿 晶体管 - TO-252-3

The Darlington Bipolar Power Transistor is designed for general purpose amplifier and low speed switching applications. The MJD122 NPN and MJD127 PNP are complementary devices.

Features

---

 |

.

Lead Formed for Surface Mount Applications in Plastic Sleeves No Suffix

.

Straight Lead Version in Plastic Sleeves "-1" Suffix

.

Lead Formed Version Available in 16 mm Tape and Reel "T4" Suffix

.

Surface Mount Replacements for 2N6040-2N6045 Series, TIP120-TIP122 Series, and TIP125-TIP127 Series

.

Monolithic Construction With Built-in Base-Emitter Shunt Resistors

.

High DC Current Gain hFE = 2500 Typ @ IC = 4.0 Adc

.

Complementary Pairs Simplifies Designs

.

NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

.

PbFree Packages are Available
