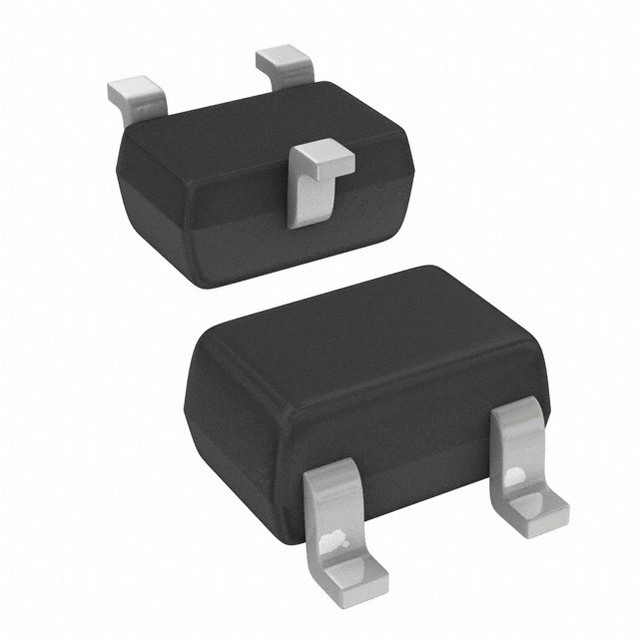

DIODE ZENER 10V 200mW SOT323
- 齐纳 ±5% 表面贴装型 SOT-323
得捷:
DIODE ZENER 10V 200MW SOT323
立创商城:
10V 200mW
艾睿:
Check out this perfect MMBZ5240BW-7-F zener diode from Diodes Zetex for operating in the reverse breakdown region. Its test current is 20 mA. Its maximum power dissipation is 200 mW. Its maximum leakage current is 3 μA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 10 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
安富利:
Diode Zener Single 10V 5% 200mW 3-Pin SOT-323 T/R
Verical:
Diode Zener Single 10V 5% 200mW Automotive 3-Pin SOT-323 T/R
Win Source:
DIODE ZENER 10V 200MW SOT323
额定电压DC 10.0 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 0.2 W
测试电流 20 mA
稳压值 10 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323
封装 SOT-323
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBZ5240BW-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBZ5240BW-7 美台 | 功能相似 | MMBZ5240BW-7-F和MMBZ5240BW-7的区别 |
MMBZ5240BW-TP 美微科 | 功能相似 | MMBZ5240BW-7-F和MMBZ5240BW-TP的区别 |
CMSZ5240B Central Semiconductor | 功能相似 | MMBZ5240BW-7-F和CMSZ5240B的区别 |
