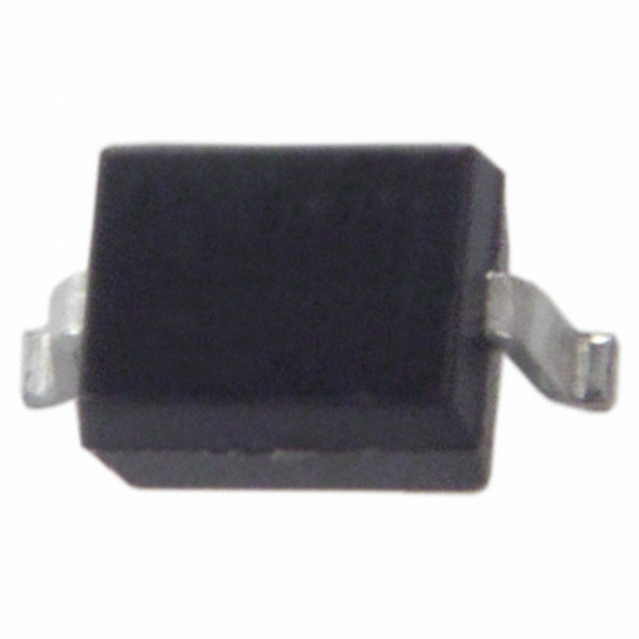

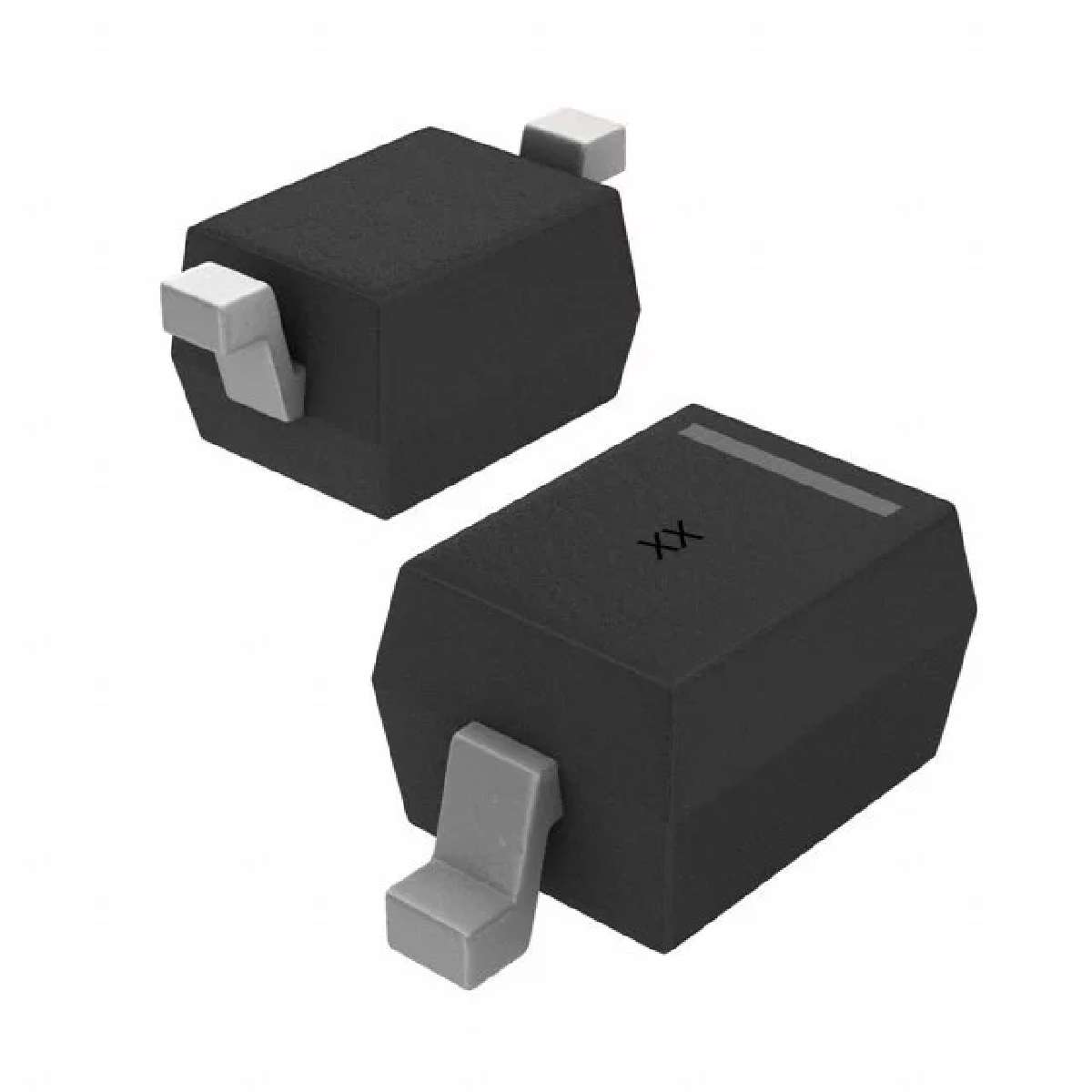

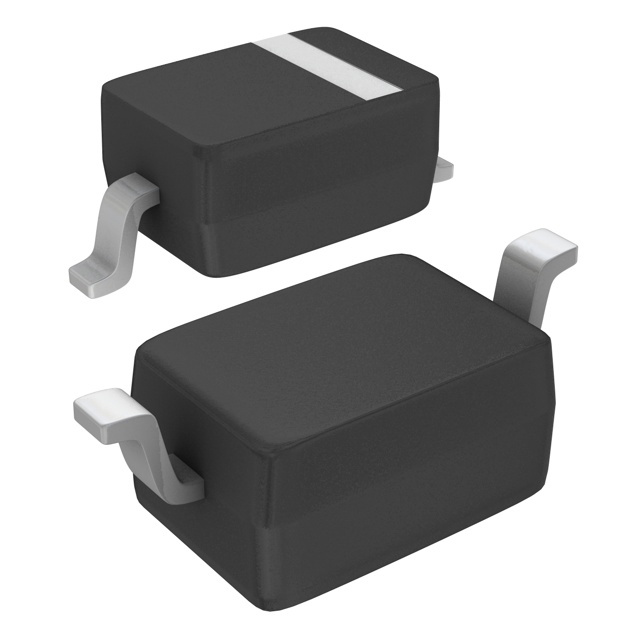

DIODE ZENER 8.7V 200mW SOD323
SURFACE MOUNT ZENER DIODE
Features
· Planar Die Construction
· Ultra-Small Surface Mount Package
· General Purpose
· Ideally suited for Automated Assembly Processes
· Lead Free/RoHS Compliant Note 3
得捷:
DIODE ZENER 8.7V 200MW SOD323
艾睿:
This MMSZ5238BS-7-F zener diode from Diodes Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 20 mA. Its maximum power dissipation is 200 mW. Its maximum leakage current is 3 μA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C. This zener device has a nominal voltage of 8.7 V and a voltage tolerance of 5%.
安富利:
Diode Zener Single 8.7V 5% 200mW 2-Pin SOD-323 T/R
Chip1Stop:
Diode Zener Single 8.7V 5% 200mW 2-Pin SOD-323 T/R
Verical:
Zener Diode Single 8.7V 5% 8Ohm 200mW 2-Pin SOD-323 T/R
Win Source:
DIODE ZENER 8.7V 200MW SOD323
额定电压DC 8.70 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 20 mA
稳压值 8.7 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.8 mm
宽度 1.4 mm
高度 1 mm
封装 SOD-323
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMSZ5238BS-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMSZ5238BS-7 美台 | 类似代替 | MMSZ5238BS-7-F和MMSZ5238BS-7的区别 |
CMDZ5238B Central Semiconductor | 功能相似 | MMSZ5238BS-7-F和CMDZ5238B的区别 |
