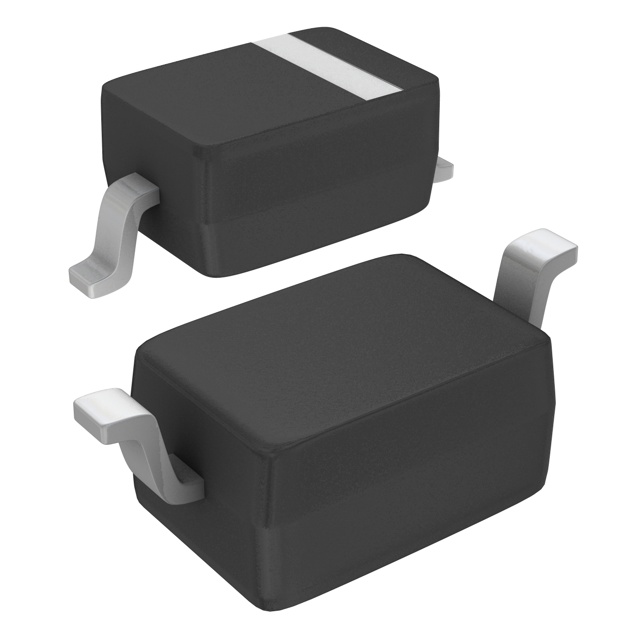

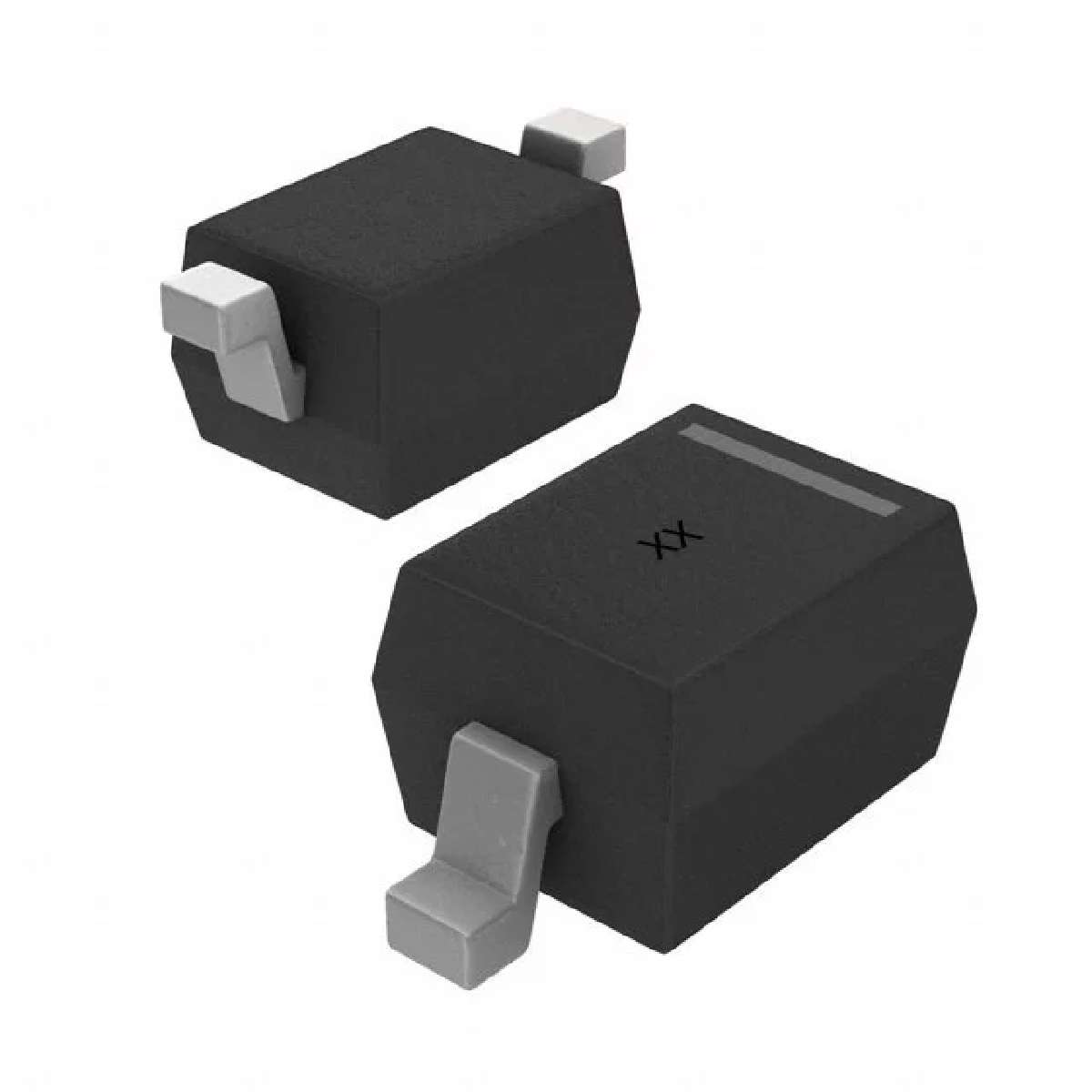

Diode Zener Single 9.1V 5% 200mW 2Pin SOD-323 T/R
SURFACE MOUNT ZENER DIODE
Features
· Planar Die Construction
· Ultra-Small Surface Mount Package
· General Purpose
· Ideally suited for Automated Assembly Processes
· Lead Free/RoHS Compliant Note 3
得捷:
DIODE ZENER 9.1V 200MW SOD323
立创商城:
9.1V 200mW
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this MMSZ5239BS-7-F zener diode from Diodes Zetex is exactly what you need. Its test current is 20 mA. Its maximum power dissipation is 200 mW. Its maximum leakage current is 3 μA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This zener diode has an operating temperature range of -65 °C to 150 °C. This zener device has a nominal voltage of 9.1 V and a voltage tolerance of 5%. It is made in a single configuration.
安富利:
Diode Zener Single 9.1V 5% 200mW 2-Pin SOD-323 T/R
Chip1Stop:
Diode Zener Single 9.1V 5% 200mW 2-Pin SOD-323 T/R
TME:
Diode: Zener; 200mW; 9.1V; SMD; reel, tape; SOD323
Verical:
Diode Zener Single 9.1V 5% 200mW Automotive 2-Pin SOD-323 T/R
Win Source:
DIODE ZENER 9.1V 200MW SOD323
额定电压DC 9.10 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 20 mA
稳压值 9.1 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2
长度 1.8 mm
宽度 1.4 mm
高度 1 mm
封装 SOD-323-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMSZ5239BS-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMSZ5239B-7-F 美台 | 类似代替 | MMSZ5239BS-7-F和MMSZ5239B-7-F的区别 |
DDZ9696S-7 美台 | 功能相似 | MMSZ5239BS-7-F和DDZ9696S-7的区别 |
MMSZ5239BQ-7-F 美台 | 功能相似 | MMSZ5239BS-7-F和MMSZ5239BQ-7-F的区别 |
