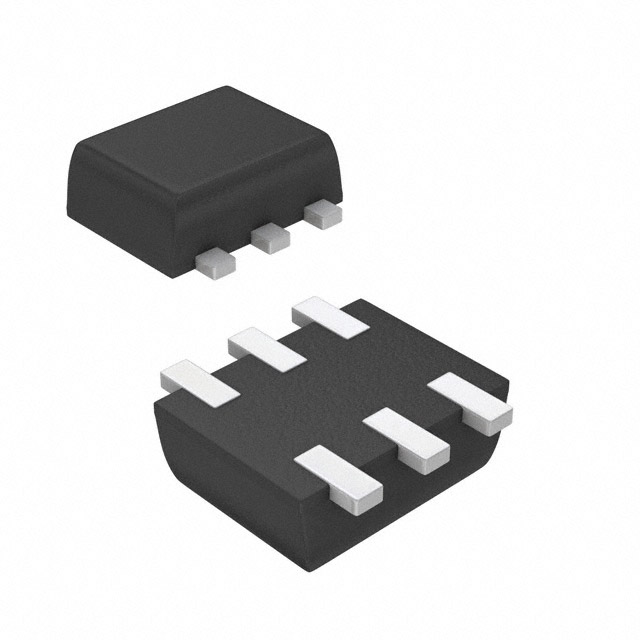

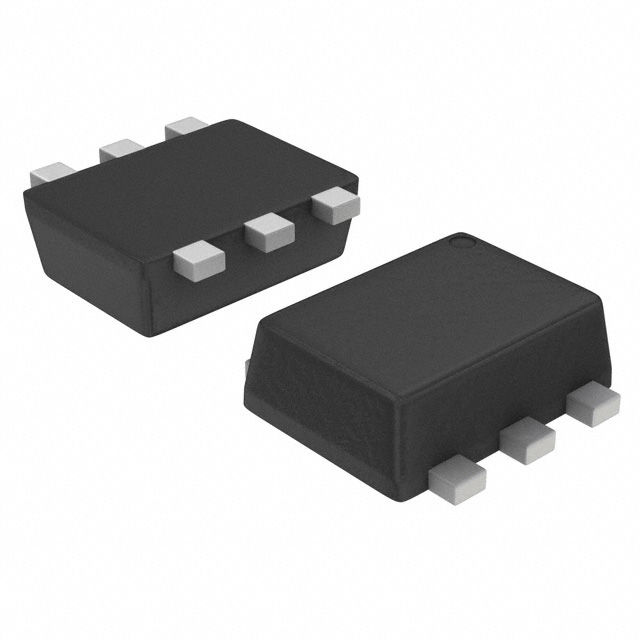

MMDT3906 系列 双 PNP 40 V 150 mW 小信号 晶体管 表面贴装 - SOT-563
Add switching and amplifying capabilities to your electronic circuit with this PNP GP BJT from Zetex. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 150 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 5 V.
额定电压DC -40.0 V
额定电流 -200 mA
极性 PNP
耗散功率 150 mW
击穿电压集电极-发射极 40 V
集电极最大允许电流 0.2A
最小电流放大倍数hFE 100 @10mA, 1V
额定功率Max 150 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 6
封装 SOT-563-6
长度 1.6 mm
宽度 1.2 mm
高度 0.6 mm
封装 SOT-563-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
