Diode Switching 600V 1A 2Pin SMB T/R
Features
Glass Passivated Die Construction
Super-Fast Recovery Time For High Efficiency
Low Forward Voltage Drop and High Current Capability
Surge Overload Rating to 35A Peak
Ideally Suited for Automated Assembly
Available in Lead Free Finish/RoHS Compliant Version Note 5
Mechanical Data

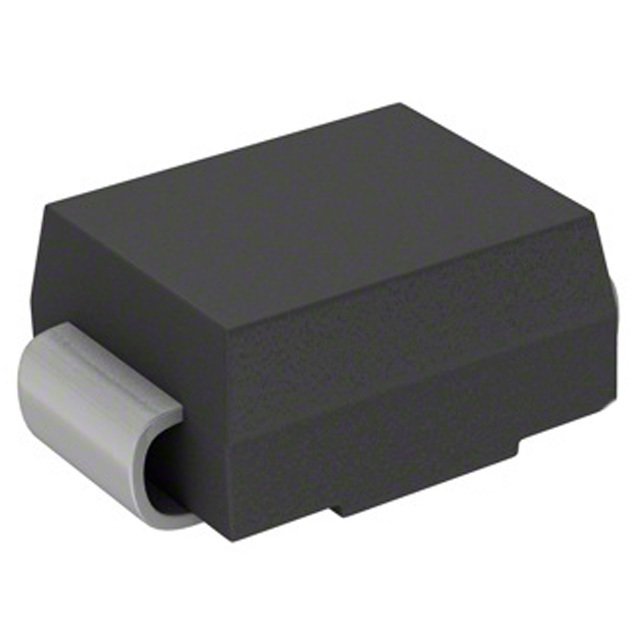

Case: SMB
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208
Also available in Lead Free Plating Matte Tin Finish. Please see Ordering Information, Note 7, on Page 3
Marking: MURS140: U1GB
MURS160: U1JB
Polarity: Cathode Band or Cathode Notch
Ordering Information: See Page 3
Weight: 0.093 grams approximate
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MURS160-13 Diodes 美台 | 当前型号 | 当前型号 |
MURS160-13-F 美台 | 类似代替 | MURS160-13和MURS160-13-F的区别 |
MURS160-M3/52T 威世 | 类似代替 | MURS160-13和MURS160-M3/52T的区别 |
MURS160-E3/5BT 威世 | 功能相似 | MURS160-13和MURS160-E3/5BT的区别 |
