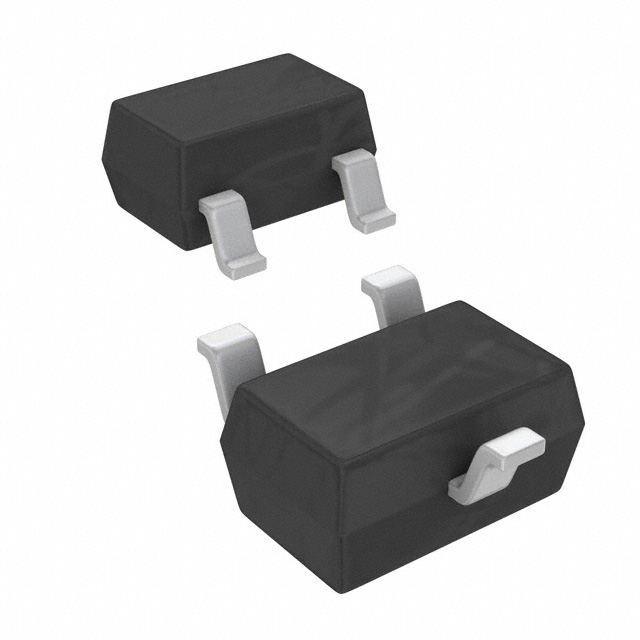

Diode Zener Single 6.2V 5% 200mW Automotive 3Pin SOT-323 T/R
Zener Diode 6.2V 200mW ±5% Surface Mount SOT-323
得捷:
DIODE ZENER 6.2V 200MW SOT323
贸泽:
Zener Diodes 200MW 6.2V
艾睿:
Check out this perfect MMBZ5234BW-7-F zener diode from Diodes Zetex for operating in the reverse breakdown region. Its maximum power dissipation is 200 mW. Its maximum leakage current is 5 μA. Its test current is 20 mA. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%.
安富利:
Diode Zener Single 6.2V 5% 200mW 3-Pin SOT-323 T/R
Chip1Stop:
Diode Zener Single 6.2V 5% 200mW 3-Pin SOT-323 T/R
Verical:
Diode Zener Single 6.2V 5% 200mW Automotive 3-Pin SOT-323 T/R
Win Source:
DIODE ZENER 6.2V 200MW SOT323
额定电压DC 6.20 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 20 mA
稳压值 6.2 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBZ5234BW-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBZ5234BW-7 美台 | 完全替代 | MMBZ5234BW-7-F和MMBZ5234BW-7的区别 |
CMSZ5234B Central Semiconductor | 功能相似 | MMBZ5234BW-7-F和CMSZ5234B的区别 |
MMBZ5234BW-TP 美微科 | 功能相似 | MMBZ5234BW-7-F和MMBZ5234BW-TP的区别 |
