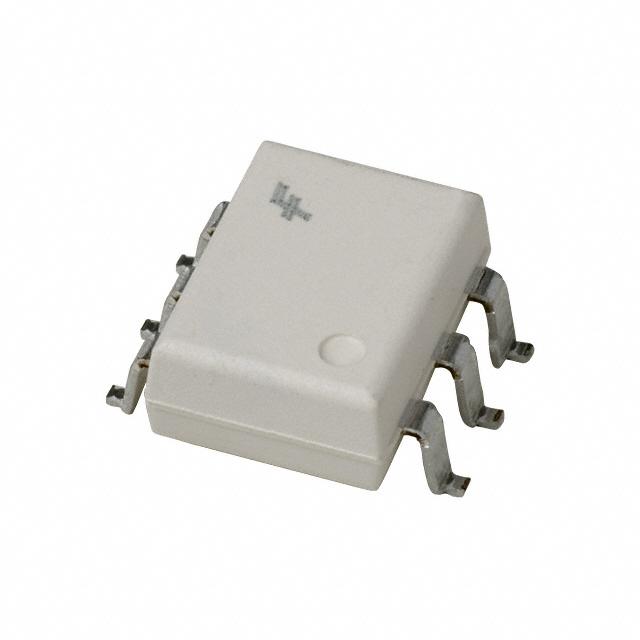

MOC3062SR2M

光电耦合器

The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

Features

---

 |

.

Simplifies Logic Control of 115/240 VAC Power

.

Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise

.

600 V Peak Blocking Voltage

.

Superior Static dv/dt

.

600 V/μs MOC306xM

.

1000 V/μs MOC316xM

.

Safety and Regulatory Approvals

.

UL1577, 4,170 VACRMS for 1 Minute

.

DIN EN/IEC60747-5-5
