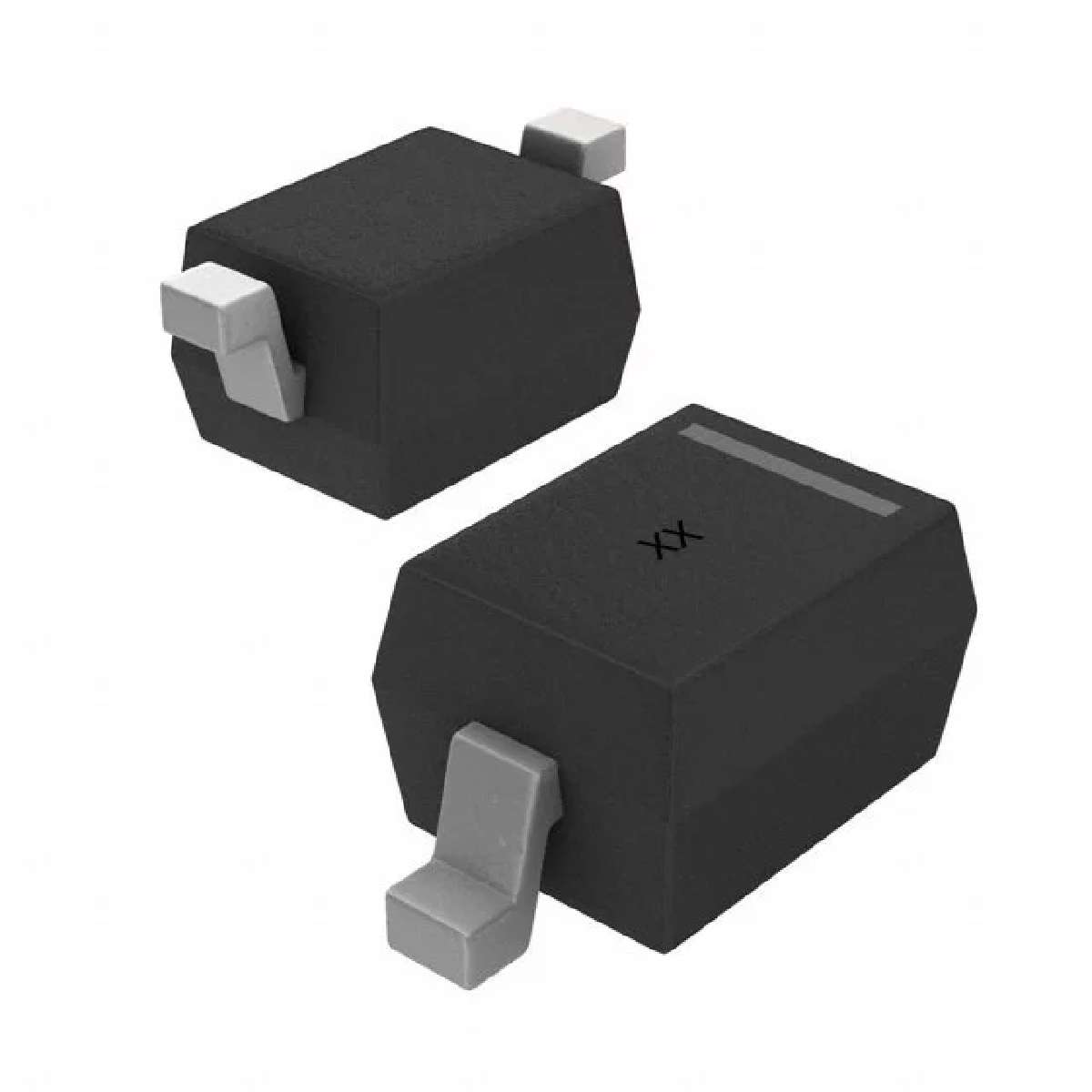

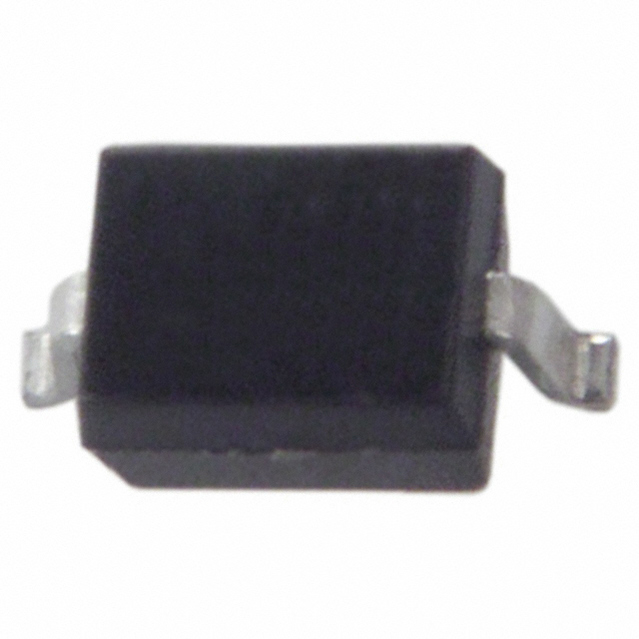

Diode Zener Single 30V 5% 200mW 2Pin SOD-323 T/R
- 齐纳 ±5% 表面贴装型 SOD-323
得捷:
DIODE ZENER 30V 200MW SOD323
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this MMSZ5256BS-7-F zener diode from Diodes Zetex is exactly what you need. Its test current is 4.2 mA. Its maximum power dissipation is 200 mW. Its maximum leakage current is 0.1 μA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 30 V and a voltage tolerance of 5%.
安富利:
Diode Zener Single 30V 5% 200mW 2-Pin SOD-323 T/R
Chip1Stop:
Diode Zener Single 30V 5% 200mW 2-Pin SOD-323 T/R
TME:
Diode: Zener; 200mW; 30V; SMD; reel, tape; SOD323
Verical:
Diode Zener Single 30V 5% 200mW Automotive 2-Pin SOD-323 T/R
儒卓力:
**Z-DIODE 0,2W 30V 5% SOD323 **
Win Source:
DIODE ZENER 30V 200MW SOD323
额定电压DC 30.0 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 4.2 mA
稳压值 30 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2

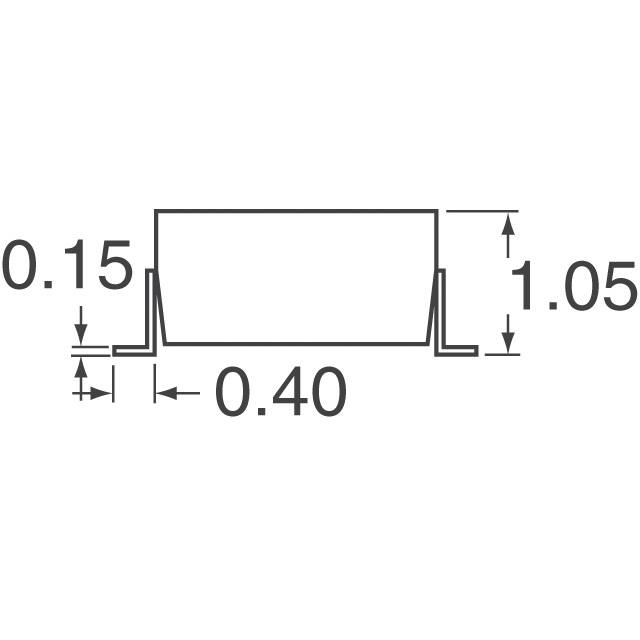

长度 1.8 mm
宽度 1.4 mm
高度 1 mm
封装 SOD-323-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMSZ5256BS-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMSZ5256BS-7 美台 | 完全替代 | MMSZ5256BS-7-F和MMSZ5256BS-7的区别 |
CZRV5256B-G 上华科技 | 类似代替 | MMSZ5256BS-7-F和CZRV5256B-G的区别 |
DDZ9713S-7 美台 | 功能相似 | MMSZ5256BS-7-F和DDZ9713S-7的区别 |
