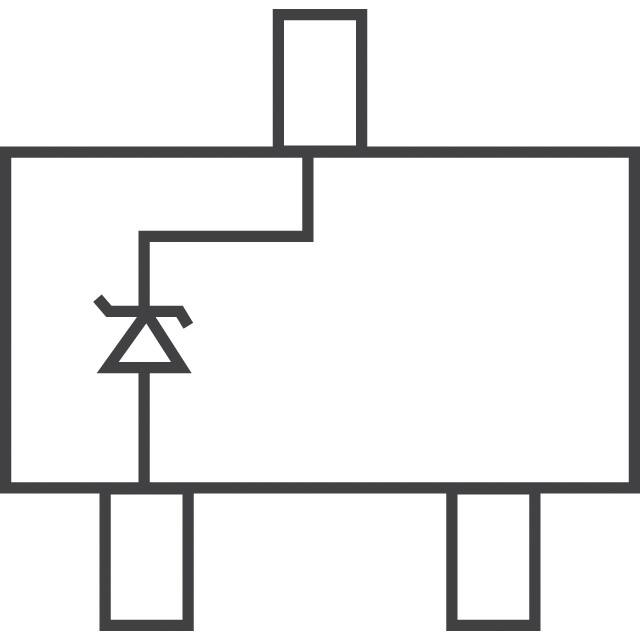

Diode Zener Single 16V 5% 350mW 3Pin SOT-23 T/R
- 齐纳 ±5% 表面贴装型 SOT-23-3
得捷:
DIODE ZENER 16V 350MW SOT23-3
立创商城:
16V 350mW
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this MMBZ5246B-7-F zener diode from Diodes Zetex is exactly what you need. Its maximum leakage current is 0.1 μA. Its test current is 7.8 mA. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This zener device has a nominal voltage of 16 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
16V 5% 350mW Zener Diode SOT-23
安富利:
Diode Zener Single 16V 5% 350mW 3-Pin SOT-23 T/R
Chip1Stop:
Diode Zener Single 16V 5% 350mW Automotive 3-Pin SOT-23 T/R
Verical:
Diode Zener Single 16V 5% 350mW Automotive 3-Pin SOT-23 T/R
Win Source:
DIODE ZENER 16V 350MW SOT23-3
额定电压DC 16.0 V
容差 ±5 %
额定功率 350 mW
正向电压 900mV @10mA
耗散功率 350 mW
测试电流 7.8 mA
稳压值 16 V
正向电压Max 900mV @10mA
额定功率Max 350 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 350 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBZ5246B-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBZ5246B-7 美台 | 完全替代 | MMBZ5246B-7-F和MMBZ5246B-7的区别 |
CMPZ5246B TR Central Semiconductor | 类似代替 | MMBZ5246B-7-F和CMPZ5246B TR的区别 |
CMPZ5246B BK Central Semiconductor | 功能相似 | MMBZ5246B-7-F和CMPZ5246B BK的区别 |
