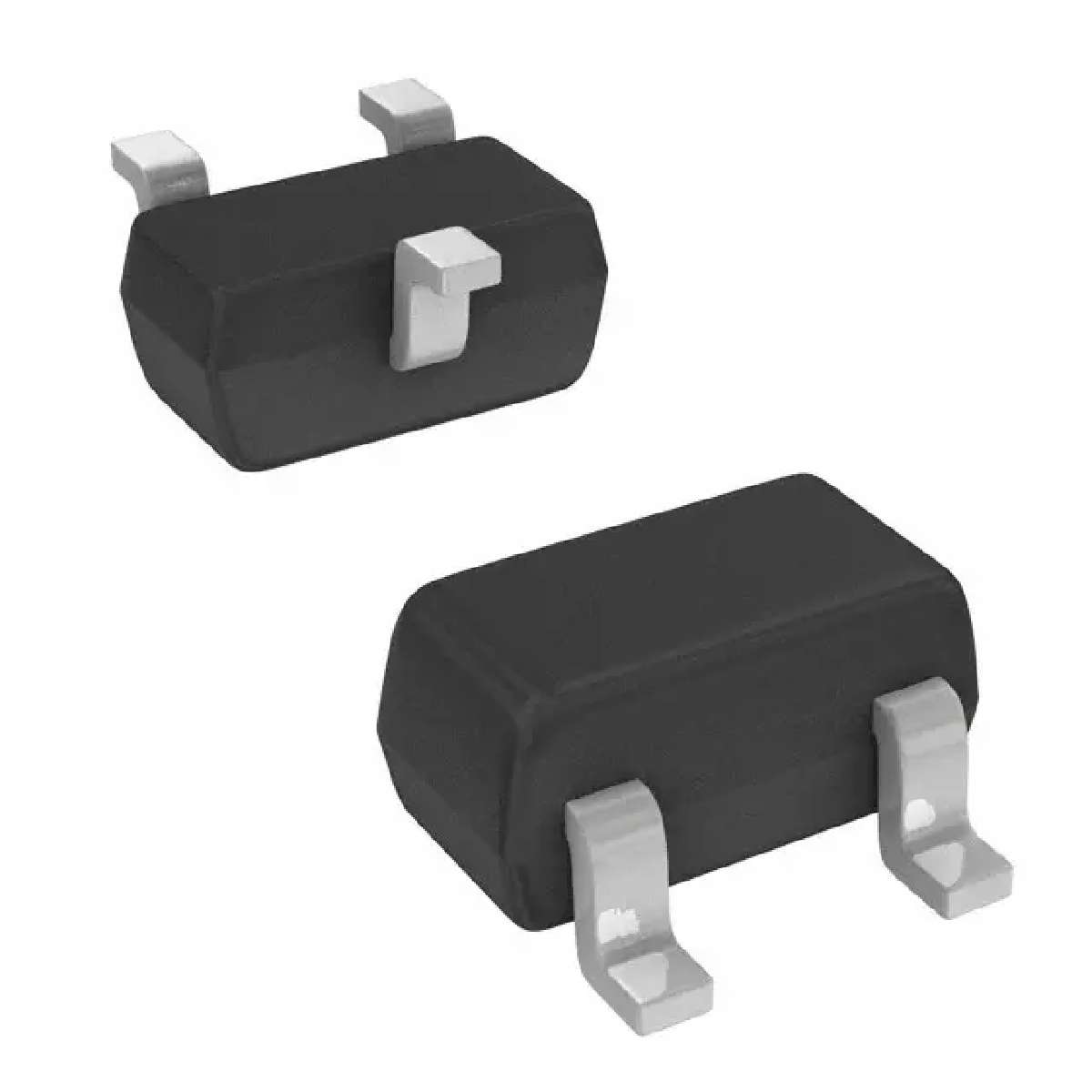

MMBD4448HT 系列 4 A 80 V 150 mW 快速开关 二极管 阵列 - SOT-523
阵列 1 对串联 标准 250mA 表面贴装型 SOT-523
得捷:
DIODE ARRAY GP 80V 250MA SOT523
立创商城:
80V 250mA 4ns
e络盟:
二极管 小信号, 双路, 双系列, 80 V, 150 mA, 1.25 V, 4 ns, 4 A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode MMBD4448HTS-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 150 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 4 A, while its maximum continuous forward current is 0.5 A. It is made in a dual series configuration.
Allied Electronics:
Diode Ultrafast 0.25A 80V SOT523
安富利:
Diode Switching 80V 0.25A 3-Pin SOT-523 T/R
Chip1Stop:
Diode Switching 80V 0.25A 3-Pin SOT-523 T/R
Verical:
Rectifier Diode Small Signal Switching 80V 0.5A 4ns 3-Pin SOT-523 T/R
Newark:
# DIODES INC. MMBD4448HTS-7-F Small Signal Diode, Dual, Dual Series, 80 V, 500 mA, 1.25 V, 4 ns, 4 A
Win Source:
DIODE ARRAY GP 80V 250MA SOT523
额定功率 150 mW
针脚数 3
正向电压 1.25V @150mA
耗散功率 150 mW
反向恢复时间 4 ns
正向电流 150 mA
最大正向浪涌电流(Ifsm) 4 A
正向电压Max 1.25 V
正向电流Max 500 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-523
封装 SOT-523
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBD4448HTS-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBD4448HTS-7 美台 | 功能相似 | MMBD4448HTS-7-F和MMBD4448HTS-7的区别 |
