ESD 抑制器/TVS 二极管 20V 225mW
Are you a designer worried about electrostatic discharge? Do not risk it, add this tvs ESD protection device from Zetex. This device"s maximum clamping voltage is 28 V. This ESD diode has a maximum ESD protection device voltage of 16@HBM kV. This ESD diode has an operating temperature range of -65 °C to 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a dual common anode|single configuration.
额定电压DC 17.0 V
额定功率 40.0 W
击穿电压 20.0 V
耗散功率 225 mW
钳位电压 28 V
脉冲峰值功率 40 W
最小反向击穿电压 19 V
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 225 mW
安装方式 Surface Mount
引脚数 3

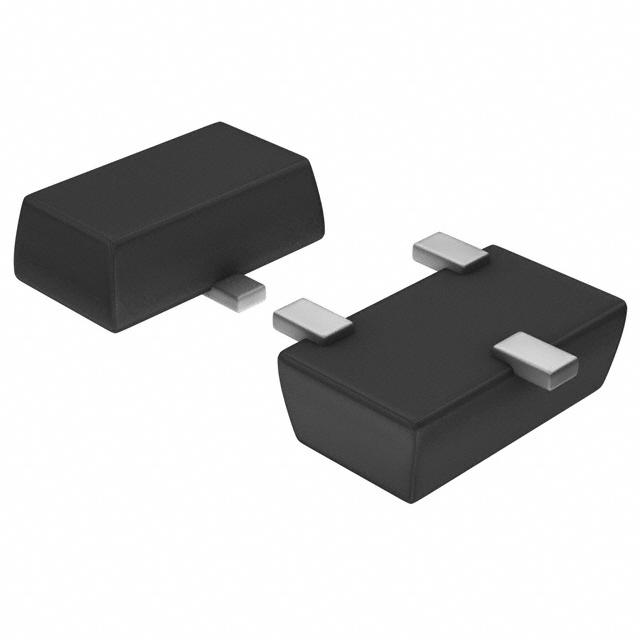

封装 SOT-23-3
长度 3.00 mm
宽度 1.40 mm
高度 1.10 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MMBZ20VAL-7 Diodes 美台 | 当前型号 | 当前型号 |
MMBZ20VAL-7-F 美台 | 类似代替 | MMBZ20VAL-7和MMBZ20VAL-7-F的区别 |
